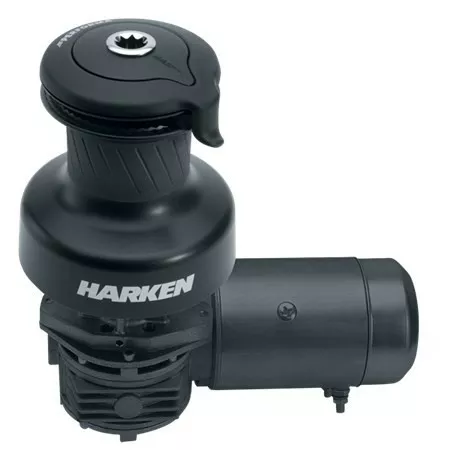

Harken 50.2STEP24H - Electric Self-Tailing Performa™ Winch 2 Speed, 24V, Horizontal 50.2STE Black

ID 1299897

$ 9,839.85

1-2 weeks delivery time

- +

Add to cart

The Harken 50.2STEP24H Electric Self-Tailing Performa™ Winch is a 24V model crafted for powerful and smooth sail trimming. With a sandblasted drum optimized for modern, small-diameter lines, it delivers superior grip and performance for both halyard and sheeting use. Engineered for efficiency and precision, this winch ensures controlled operation and maximum pulling strength at the push of a button, also featuring a racing disconnect rod.

Description
Ask a Question

Harken 50.2STEP24H - Electric Self-Tailing Performa™ Winch 2 Speed, 24V, Horizontal 50.2STE Black

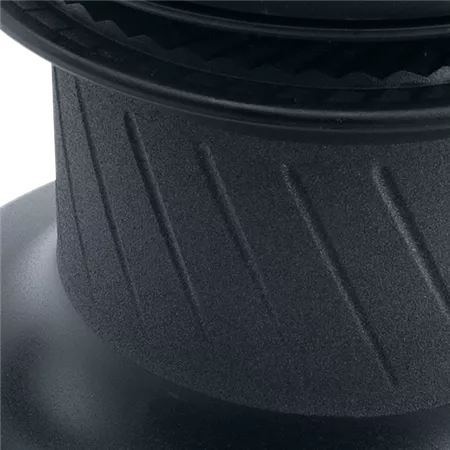

The Harken 50.2STEP24H is a 24V electric self-tailing Performa™ winch crafted for powerful and smooth sail trimming. With a sandblasted drum optimized for modern, small-diameter lines, it delivers superior grip and performance for both halyard and sheeting use. Engineered for efficiency and precision, this model ensures controlled operation and maximum pulling strength at the push of a button.
- Item number: HKW50.2STEP24H
- Configuration: Self-tailing
- Speed: 2
- Weight: 13.2 kg (6.0 lb)
- Weight of Winch and Motor: 16.8 kg (37.1 lb)
- Motor weight: 10.8 kg (23.9 lb)
- Maximum line Ø: 14 mm (9/16 in)
- Minimum line Ø: 8 mm (5/16 in)
- Drum Ø: 110 mm (4 5/16 in)
- Base Ø: 195 mm (7 11/16 in)
- Height: 212 mm (8 5/16 in)
- Line entry height: 97 mm (3 13/16 in)
- Fasteners: M8 SH mm (5/16 SH in)
- Fastener circle: 150 mm (5 7/8 in)
- Number of fasteners: 5
- E: 69 mm (2 3/4 in)
- F: 181 mm (7 1/8 in)
- G: 244 mm (9 5/8 in)
- Gear ratio - 1: 2.40
- Gear ratio - 2: 10.90
- Power ratio - 1: 11.10
- Power ratio - 2: 50.40
- Racing disconnect rod: B50PDR
