The Harken 477 underdeck furling system is designed for small boats from 4.8 m to 9 m, featuring a drum that lowers tack height for better sail area and offers optional hoistable ball bearing halyard swivel for easy sail handling without removing the headstay, weighing 661 g with a maximum working load of 431 kg.
- Description
- Ask a Question
-

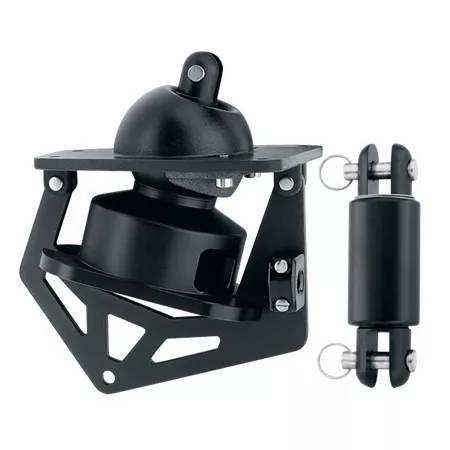

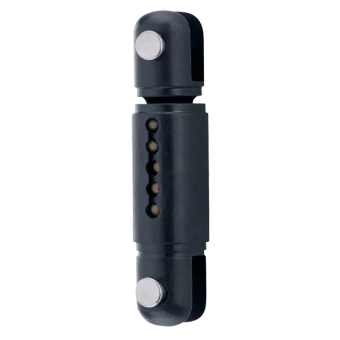

Harken 477 - Underdeck Furling System 3mm Luff Wire
Designed for small boats ranging from 4.8 m to 9 m (16 to 30 ft), the Harken 477 features an underdeck drum that optimizes sail area by lowering the tack height. It allows for efficient sail management with an optional hoistable ball bearing halyard swivel, making it easy to raise or lower the sail without removing the headstay. Item number: HK477
- Weight: 661 g (23.3 oz)
- Maximum line Ø: 4 mm (5/32 in)
- Maximum working load: 431 kg (950 lb)
- Minimum line Ø: 3 mm (1/8 in)
- Drum Ø: 79 mm (3 1/8 in)
- Clevis pin Ø: 6.4 mm (1/4 in)
- Pin-to-pin length: 156 mm (6 1/8 in)
- Jaw width: 8 mm (5/16 in)
- Maximum luff wire Ø: 3 mm (1/8 in)
-
