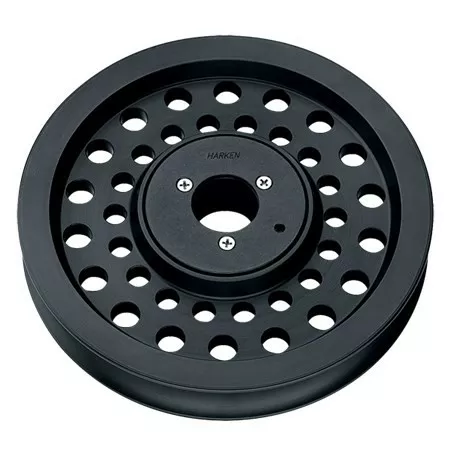

Harken 1734 - 203mm High-Load Sheave
The 203mm high-load sheave is built for demanding applications or replacement purposes. Its bearing system integrates sideload-carrying balls with a PTFE composite bushing to handle both radial and side loads efficiently.
- Sheave Ø: 203 mm (8 in)
- Width: 35 mm (1 3/8 in)
- Weight: 1300 g (46 oz)
- Maximum line Ø: 22 mm (7/8 in)
- Maximum working load: 16783 kg (37000 lb)
- Breaking load: 45360 kg (100000 lb)
- Maximum wire Ø: 12 mm (1/2 in)
- Center pin Ø: 31.7 mm (1 1/4 in)
- Item number: HK1734
-
