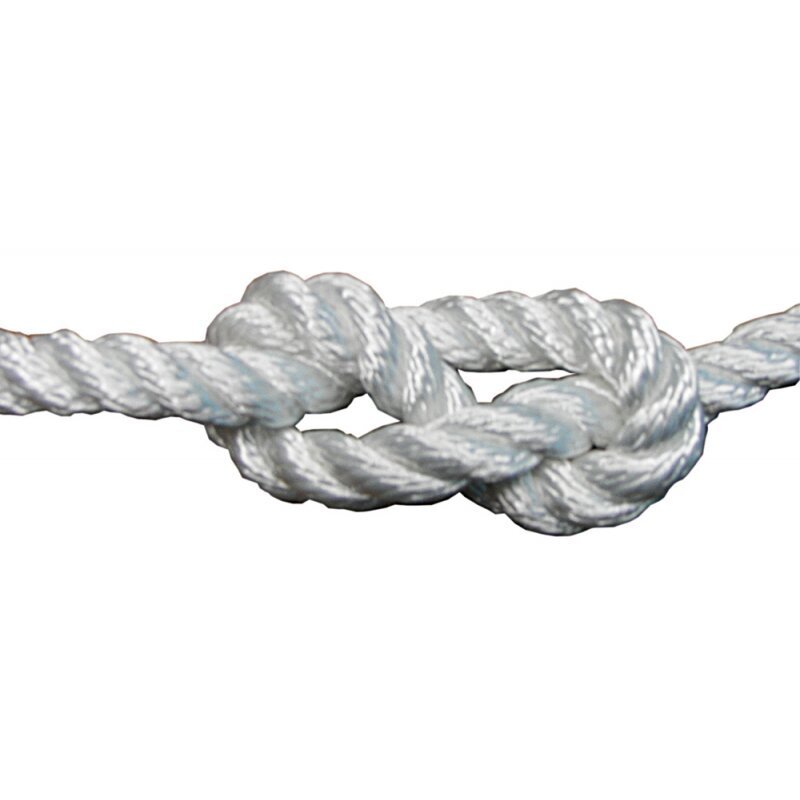

Plam 3-strand double twisted mooring rope made from 100% high-tenacity polyester fibre, with UV resistance, high tensile strength and very low elongation. Available in white, black and navy blue, in Ø 8-40 mm sizes with breaking loads from 1020 to 23900 kg; Ø 8-14 mm versions are supplied on 200 m spools and Ø 16-40 mm versions on 100 m spools. Designed for mooring, anchoring, fender fixing and general onboard fastening applications.
- Description
- Ask a Question
-
Plam Double Twisted High-Tenacity Polyester Mooring Rope Ø 8-40 mm 100-200 m
Plam mooring rope manufactured from 100% high-tenacity polyester fibre with a 3-strand, double twisted construction. The rope is UV resistant, provides high tensile strength and very low elongation, and is suitable for mooring, anchoring, fixing fenders and general onboard fastening applications.
Technical Data
Brand Plam Type Mooring rope Material 100% high-tenacity polyester fibre Construction 3-strand, double twisted Class Sinking UV Resistance Yes Available Colors White, Black, Navy Blue Diameter Range Ø 8-40 mm Breaking Load Range 1020-23900 kg Spool Length 100 or 200 m, depending on diameter
Sizes and Breaking Loads
Diameter Breaking Load Spool Length Ø 8 mm 1020 kg 200 m Ø 10 mm 1590 kg 200 m Ø 12 mm 2270 kg 200 m Ø 14 mm 3180 kg 200 m Ø 16 mm 4060 kg 100 m Ø 18 mm 5080 kg 100 m Ø 20 mm 6350 kg 100 m Ø 22 mm 7620 kg 100 m Ø 24 mm 9140 kg 100 m Ø 26 mm 10670 kg 100 m Ø 28 mm 12200 kg 100 m Ø 30 mm 13950 kg 100 m Ø 40 mm 23900 kg 100 m
Available Versions
Diameter White Article Black Article Navy Blue Article Ø 8 mm 0807008 0807108 0807208 Ø 10 mm 0807010 0807110 0807210 Ø 12 mm 0807012 0807112 0807212 Ø 14 mm 0807014 0807114 0807214 Ø 16 mm 0807016 0807116 0807216 Ø 18 mm 0807018 0807118 0807218 Ø 20 mm 0807020 0807120 0807220 Ø 22 mm 0807022 0807122 0807222 Ø 24 mm 0807024 0807124 0807224 Ø 26 mm 0807026 - - Ø 28 mm 0807028 - - Ø 30 mm 0807030 0807130 0807230 Ø 40 mm 0807040 0807140 -
Applications
- Mooring
- Anchoring
- Fender fixing
- General onboard fastening and bindings
-
