ID
1388199
$ 498.28
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
- 10
- 12
- 14
- 16
- 18
- 20
Color:
- Blue
- Yellow
- Red
- Green
- Black
- White
- Brown
- Beige
- Navy
- White/Blue
- White/Green
- White/Red
- White/Yellow
- Gray/Red
- Grey/Red
Item:
- Roll 100 m
- Roll 200 m
English Braids Braid On Braid high-performance double-braided sailing rope with a 12-strand high-tenacity polyester core and 24-strand polyester cover. Core and cover are pre-stretched and heat-set to provide minimal stretch while retaining flexibility, easy splicing and high abrasion resistance. Designed for halyards and sheets, with excellent holding power in Spinlock rope clutches. Available in Ø6-20 mm with white/tracer and solid-color variants; documented breaking loads range from 1350 kg at Ø6 mm to 6000 kg at Ø14 mm.
- Description
- Ask a Question
-

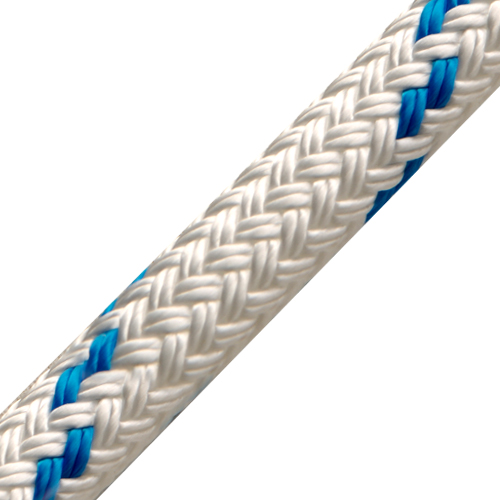

English Braids Braid On Braid Pre-Stretched Polyester Halyard & Sheet Rope 6-20 mm - Assorted Colors
English Braids Braid On Braid is a high-performance double-braided polyester rope developed for sailing running rigging. Its construction combines a 12-strand high-tenacity polyester core with a 24-strand polyester cover, providing strength, low stretch, flexibility and reliable handling.
Both the core and cover are pre-stretched and heat-set to minimize elongation while keeping the rope flexible and easy to splice. The durable polyester cover provides high abrasion resistance, good hand grip and excellent holding power in Spinlock rope clutches. The range is suitable for demanding halyard and sheet applications.
Product Features
- High-tenacity polyester construction
- 12-strand polyester core
- 24-strand polyester cover
- Double-braided construction
- Core and cover pre-stretched
- Heat-set for minimal stretch
- Flexible and easy to splice
- Designed to resist unraveling during splicing
- High abrasion resistance
- Good color retention
- Excellent grip and holding power in Spinlock rope clutches
- Suitable for halyards and sheets
Technical Data
Brand English Braids Product Series Braid On Braid Material High-Tenacity Polyester Construction Double Braid Core 12-Strand Polyester Cover 24-Strand Polyester Treatment Pre-Stretched and Heat-Set Diameter Range 6-20 mm Breaking Load 1350-6000 kg where specified Applications Halyards and Sheets
Available Versions
English Braids Article Diameter Color Breaking Load 16060200910 6 mm White/Blue 1350 kg 16060200928 6 mm White/Green 1350 kg 16060200960 6 mm White/Red 1350 kg 16060200000 6 mm White 1350 kg 16060200971 6 mm Blue 1350 kg 16060200994 6 mm Beige 1350 kg 16060200975 6 mm Yellow 1350 kg 16060200912 6 mm Navy 1350 kg 16060200970 6 mm Red 1350 kg 6060200906 6 mm Grey/Red 1350 kg 6060200900 6 mm Black 1350 kg 16080200910 8 mm White/Blue 2000 kg 16080200980 8 mm White/Yellow 2000 kg 16080200928 8 mm White/Green 2000 kg 16080200960 8 mm White/Red 2000 kg 16080200000 8 mm White 2000 kg 16080200971 8 mm Blue 2000 kg 16080200994 8 mm Beige 2000 kg 16080200975 8 mm Yellow 2000 kg 16080200974 8 mm Green 2000 kg 16080200912 8 mm Navy 2000 kg 16080200970 8 mm Red 2000 kg 6080200906 8 mm Grey/Red 2000 kg 16080200900 8 mm Black 2000 kg 16100200910 10 mm White/Blue 3150 kg 16100200980 10 mm White/Yellow 3150 kg 16100200928 10 mm White/Green 3150 kg 16100200960 10 mm White/Red 3150 kg 16100200000 10 mm White 3150 kg 16100200971 10 mm Blue 3150 kg 16100200994 10 mm Beige 3150 kg 16100200975 10 mm Yellow 3150 kg 16100200974 10 mm Green 3150 kg 16100200912 10 mm Navy 3150 kg 16100200970 10 mm Red 3150 kg 16100200906 10 mm Grey/Red 3150 kg 16100200900 10 mm Black 3150 kg 16120200910 12 mm White/Blue 4300 kg 16120200980 12 mm White/Yellow 4300 kg 16120200928 12 mm White/Green 4300 kg 16120200960 12 mm White/Red 4300 kg 16120200000 12 mm White 4300 kg 16120200971 12 mm Blue 4300 kg 16120200994 12 mm Beige 4300 kg 16120200975 12 mm Yellow 4300 kg 16120200974 12 mm Green 4300 kg 16120200912 12 mm Navy 4300 kg 16120200970 12 mm Red 4300 kg 16120200906 12 mm Grey/Red 4300 kg 16120200900 12 mm Black 4300 kg 16120100910 12 mm White/Blue, 100 m Roll 4300 kg 16120100980 12 mm White/Yellow, 100 m Roll 4300 kg 16120100928 12 mm White/Green, 100 m Roll 4300 kg 16120100960 12 mm White/Red, 100 m Roll 4300 kg 16120100000 12 mm White, 100 m Roll - 16120100971 12 mm Blue, 100 m Roll 4300 kg 16120100994 12 mm Beige, 100 m Roll 4300 kg 16120100975 12 mm Yellow, 100 m Roll 4300 kg 16120100974 12 mm Green, 100 m Roll 4300 kg 16120100912 12 mm Navy, 100 m Roll 4300 kg 16120100970 12 mm Red, 100 m Roll 4300 kg 16120100906 12 mm Grey/Red, 100 m Roll 4300 kg 16120100900 12 mm Black, 100 m Roll 4300 kg 16140100910 14 mm White/Blue 6000 kg 16140100960 14 mm White/Red 6000 kg 16140100000 14 mm White 6000 kg 16140100994 14 mm Beige 6000 kg 060214GE 14 mm Yellow 6000 kg 16140100912 14 mm Navy 6000 kg 16140100970 14 mm Red 6000 kg 16140100900 14 mm Black 6000 kg 16160100910 16 mm White/Blue - 16160100960 16 mm White/Red - 16160100000 16 mm White - 16160100994 16 mm Beige - 16180100910 18 mm White/Blue - 16180100960 18 mm White/Red - 16180100000 18 mm White - 16180100900 18 mm Black - 060220ZW 20 mm Black - -
