ID
1360398
$ 118.11
1-2 weeks delivery time
-
+
The Barton 22312 is a stand-up block with integrated plunger system designed for 20 mm T-section tracks. It features a stainless steel eye and loop, through-bolted for strength, and includes a Series 2 block with a 45 mm sheave for lines up to 8 mm. A moulded plastic spring/gaiter keeps the block upright and prevents rope snagging. With a safe working load of 370 kg and break load of 740 kg, it offers reliable performance for control line systems. Weight is 195 g with dimensions of 75 × 32 × 115 mm.
- Description
- Ask a Question
-

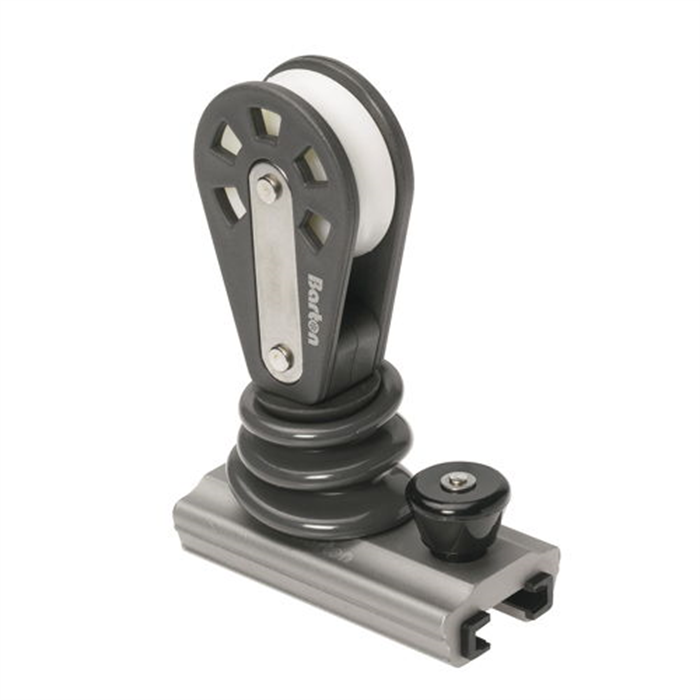

Barton 22312 - Stand-Up Block with Plunger – 20mm T Track, 45mm Sheave, SWL 370kg
The Barton 22312 Stand-Up Block is a robust and versatile unit designed for 20 mm T-section track systems, featuring an integrated plunger mechanism for secure positioning and adjustment.
The block is fitted with a stainless steel eye and loop, through-bolted for maximum strength and durability. It includes a Series 2 block with a 45 mm sheave, providing smooth line handling for ropes up to 8 mm in diameter.
A moulded plastic spring and gaiter keeps the block in an upright position, preventing it from tumbling and reducing the risk of rope snagging, ensuring efficient and safe operation under load.
Key Features
- Stand-up block with integrated plunger system
- Designed for 20 mm T-section track systems
- Stainless steel eye and loop for secure attachment
- Through-bolted construction for enhanced strength
- Includes Series 2 block with 45 mm sheave
- Supports ropes up to 8 mm diameter
- Spring-loaded base keeps block upright
- Prevents rope snagging and improves handling
Technical Specifications
Part Number 22312 Product Type Stand-Up Block with Plunger Track Compatibility 20 mm T-section track Sheave Size 45 mm (1 3/4") Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 195 g Dimensions 75 × 32 × 115 mm
Applications
- Mainsheet and control line systems
- T-track mounted block setups
- Dinghies, dayboats and small cruisers
- Adjustable lead and trimming systems
The Barton stand-up block provides a durable and efficient solution, ensuring stable positioning, smooth operation and reliable performance in a wide range of sailing applications.
-
