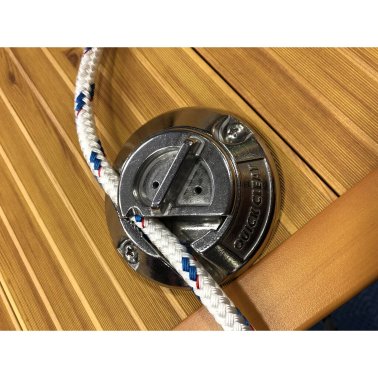

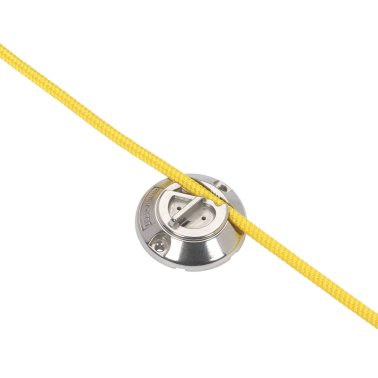

The Barton 60040 Quick Cleat™ is a size 2 heavy-duty spring-loaded locking cleat made from polished 316 stainless steel, designed for ropes up to 10 mm. With a 540 kg working load, it provides a robust no-knot solution for secure and fast line handling on yachts, RIBs, and workboats.
- Description
- Ask a Question
-
Barton 60040 – Quick Cleat™ Size 2 Polished 316 Stainless Steel, for Rope Ø10mm, 540kg SWL
The Barton 60040 Quick Cleat™ is a heavy-duty no-knot line securing system engineered for demanding marine applications. Manufactured from polished 316 stainless steel, it delivers exceptional strength, corrosion resistance, and long service life in harsh environments.
Featuring a spring-loaded locking mechanism, the cleat allows rapid adjustment of rope tension in one direction while securely locking the line in the other. Its low-profile design reduces snagging and fully contains the rope, preventing accidental release during operation. :contentReference[oaicite:0]{index=0}
Key Features
- Heavy-duty no-knot cleat system
- Manufactured from polished 316 stainless steel
- Suitable for ropes up to 10 mm diameter
- Spring-loaded locking mechanism for secure grip
- Low-profile design reduces snagging
- Allows fast adjustment and secure locking
- Designed for horizontal or vertical rope applications
Technical Specifications
Part Number 60040 Product Type Quick Cleat™ Size 2 (Stainless Steel) Max Rope Diameter 10 mm (25/64") Safe Working Load (SWL) 540 kg (1190 lbs) Material 316 stainless steel Fixing Hole Size 5 mm (M5) Weight 272 g Base Diameter 76 mm Height 28 mm Dimensions 76 × 76 × 28 mm
Applications
- Power boats, RIBs, and tenders
- Sailing yachts and workboats
- Fender and anchor line control
- Dock lines and tie-down systems
- Fishing gear and heavy-duty equipment securing
The Barton Quick Cleat™ stainless steel range offers a robust, high-load, and efficient alternative to traditional cleats, delivering fast operation, secure holding, and long-term durability in professional and recreational marine use.
-
