The Scanstrut SC-AOB-A2 ATMOS Built-In Compressor is a marine-grade 12V air system providing up to 20 PSI for inflating paddleboards and towables, featuring two-stage pumping, waterproof construction, wide operating temperatures, and versatile installation options.
- Description
- Ask a Question
-
Scanstrut SC-AOB-A2 - ATMOS Built-In Compressor 12V (Max. 20 PSI / 1.37 Bar)
The Scanstrut SC-AOB-A2 ATMOS Built-In Compressor is a powerful, marine-grade 12V air system designed for convenience and performance. It allows effortless inflation of paddleboards, towables, and more—bringing efficiency and comfort to every adventure on the water.
- Operates in ambient temperatures from -20ºC to +50ºC
- Compatible with 12V battery systems (11.5 – 14V)
- Maximum current draw: 12A (140W)
- Maximum pressure: 20 PSI / 1.37 BAR
- Max airflow at 0–1 PSI: 350 LPM / 12.3 CFM
- Max airflow at 1–20 PSI: 70 LPM / 2.5 CFM
- Standby power draw: 0.1W Max
- Two-stage pump operation:
- Stage 1: 0 – 1 PSI
- Stage 2: 1.1 – 20 PSI
- Installation angle: +10º to -30º from vertical
- Ignition Protection certified (ISO 8846 and SAE J1171)
- Safe for installation anywhere on a boat or vehicle

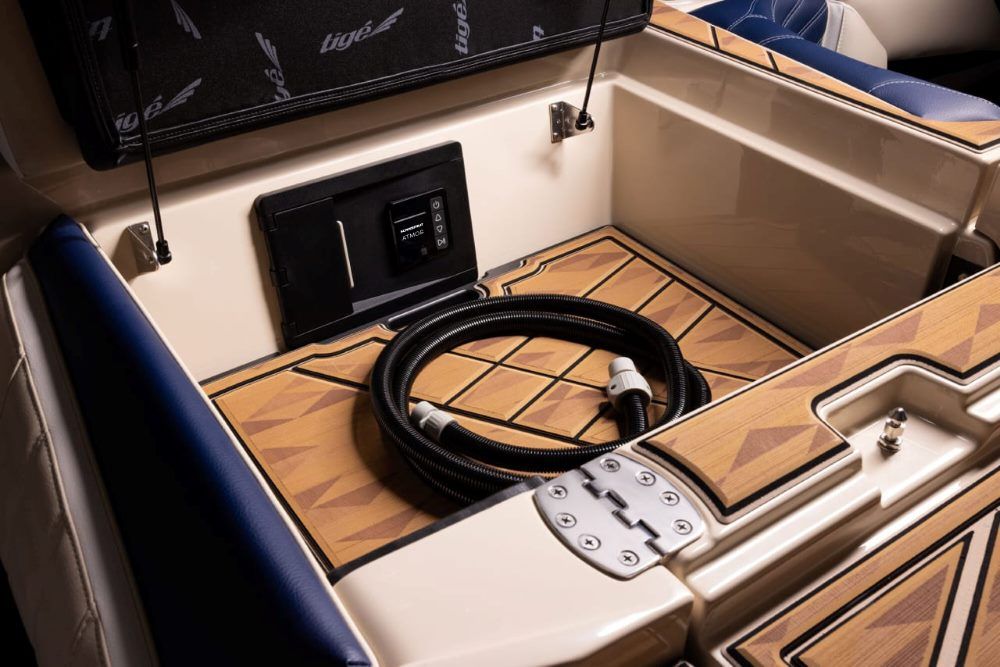

- Fits into various onboard locations such as seating, side panels, or consoles

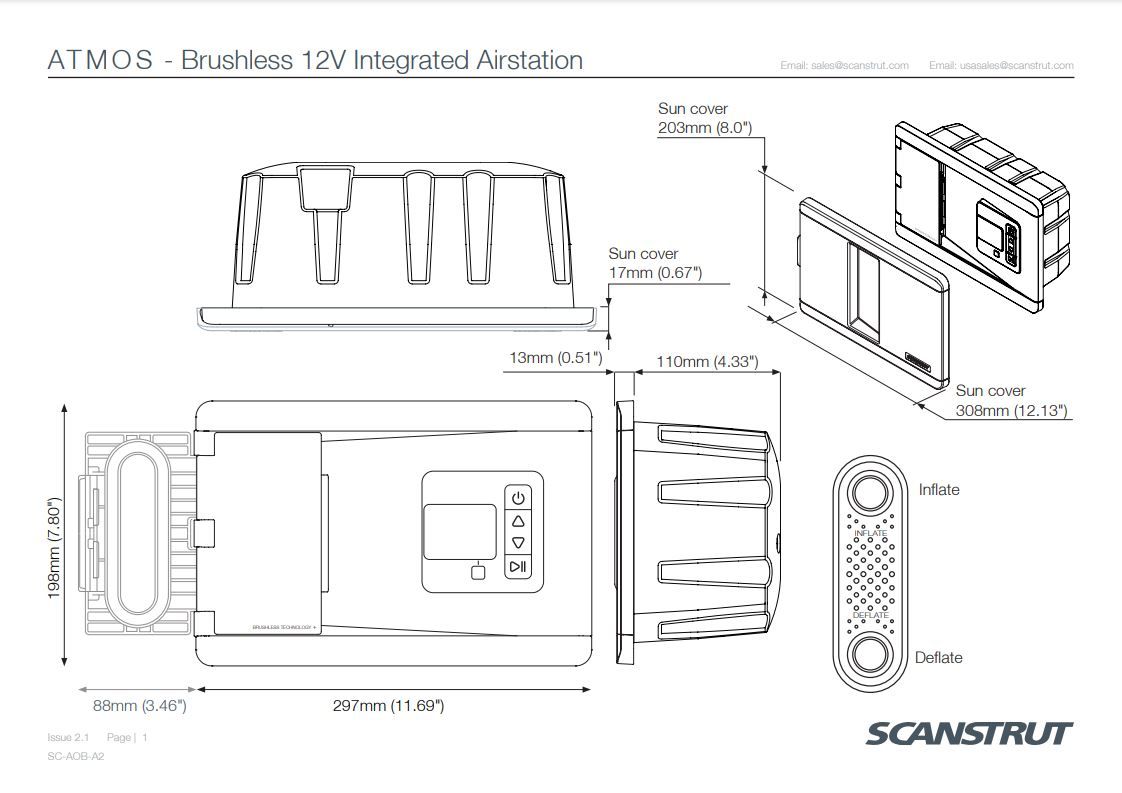

- Minimum cavity depth required: 110mm (4.33”)
- Waterproof and engineered for marine environments
- Designed to enhance time on the water with effortless inflation performance
- Item number: SCSC-AOB-A2
-
