Osculati Boat Trailer Fixed Keel Central Rollers with Double Tube Bracket

ID 1379285

$ 57.71

1-2 weeks delivery time

Type:

Small
Large

Size:

30x30 mm
40x40 mm

The Osculati Fixed Keel Central Roller range is designed for boat trailer keel support and guidance applications. Featuring a fixed central roller mounted on a double-tube bracket, the assemblies are available for 30 x 30 mm and 40 x 40 mm tube sections. The range includes small and large versions with overall widths from 330 mm to 340 mm and heights from 210 mm to 245 mm. Depending on the model, the assemblies utilize spare rollers 02.031.08, 02.029.11 or 02.031.09.

Description
Ask a Question

Osculati Fixed Keel Central Rollers with Double Tube Bracket – 330 to 340 mm Width

The Osculati Fixed Keel Central Roller range is designed to provide stable keel support and accurate boat positioning on trailers. The assemblies combine a central roller with a robust double-tube bracket structure for reliable load distribution and guidance during launching and recovery operations.

Available in small and large configurations, the range supports different trailer frame sizes and installation requirements. Multiple replacement roller options are available depending on the selected model.

Fixed central roller assembly;
Double-tube bracket construction;
Suitable for boat trailer keel support;
Compatible with 30 x 30 mm and 40 x 40 mm tube sections;
Small and large versions available;
Overall widths from 330 mm to 340 mm;
Heights from 210 mm to 245 mm;
Replaceable roller design.

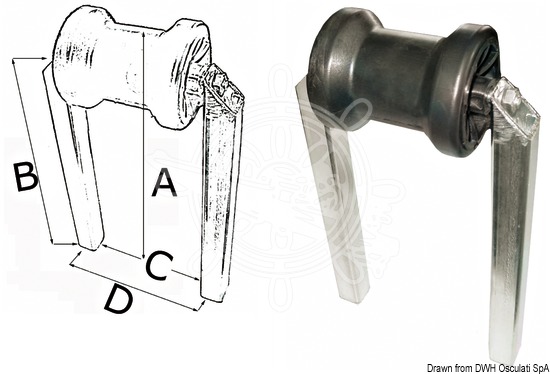

Code	Type	Tube Section (mm)	A (mm)	B (mm)	C (mm)	D (mm)	Spare Roller
02.030.12	Small	40 x 40	340	300	150	180	02.031.08
02.030.14	Large	30 x 30	330	300	210	245	02.031.09; 02.029.11
02.030.16	Large	40 x 40	330	300	210	245	02.031.09; 02.029.11
