ID
1281652
$ 77.09
1-2 weeks delivery time
-
+
The Whale WX1531 swivel 90° elbow fitting connects a 1/2-inch BSP female thread to a 15 mm pipe for flexible directional changes in mobile plumbing. Supplied as a 2-piece pack, it is rated up to 6 bar (87 psi) hot water pressure at up to 65°C (150°F), and up to 12 bar (174 psi) cold water pressure at up to 20°C (68°F), and includes WX15 Double Gripper retention with cage collet leak protection.
- Description
- Ask a Question
-

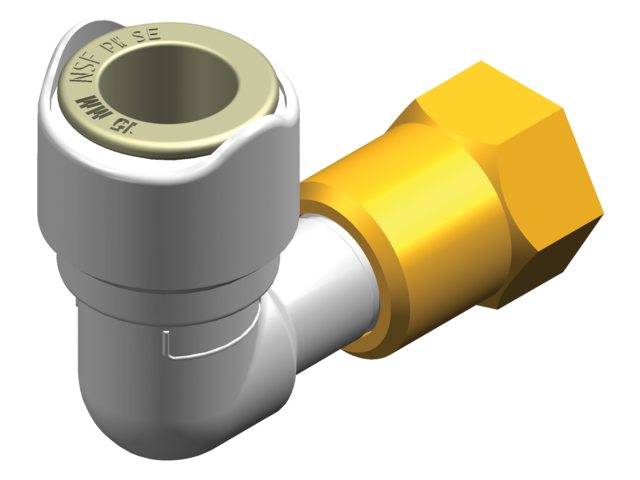

Whale WX1531 Swivel 90° Female Elbow to 15 mm Pipe
The Whale WX1531 is a swivel 90° elbow adapter for joining a 1/2-inch BSP female threaded connection to a 15 mm pipe. It is designed for mobile plumbing installations where tight routing and directional changes are required, while maintaining a secure, reusable connection.
Technical Specifications
Brand Whale Manufacturer Number WX1531 Article Number 17540488 Type Swivel 90° elbow female adapter Thread Connection 1/2 inch BSP female Pipe Connection 15 mm Pack Quantity 2 pcs Max Pressure (Hot Water) 6 bar (87 psi) Max Temperature (Hot Water) 65°C (150°F) Max Pressure (Cold Water) 12 bar (174 psi) Max Temperature (Cold Water) 20°C (68°F)
Features
- WX15 Double Gripper design for secure pipe retention under pressure
- Cage collet design helps eliminate leaks near bends
- Internal support ring helps prevent O-ring distortion and leakage
- Strong single-piece moulded construction
- Outer sleeve with collet cover helps prevent accidental pipe release
- No collet clips required
- Pipework cut marks provide a visual guide for full insertion
Product Details
- Installation: Cut pipework to length with Whale cutters, then push the pipe into the fitting to the second internal stop.
- To release: Push back the grey collet into the fitting, hold the collet in, and pull the pipe out.
-
