The Whale WX1504 quick-connect equal straight connector set is designed to join two 15 mm pipes in hot and cold water systems and is supplied as a 2-piece pack. It is rated up to 6 bar (87 psi) at 65°C (150°F) for hot water and up to 12 bar (174 psi) at 20°C (68°F) for cold water, and uses a double gripper design with a cage collet and internal support ring for secure sealing.
- Description
- Ask a Question
-

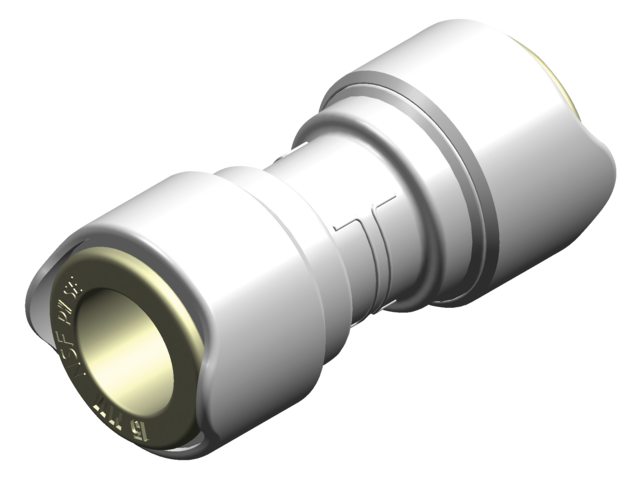

Whale WX1504 Quick-Connect Equal Straight 15 mm Connector Set
The Whale WX1504 is a straight, equal quick-connect fitting for creating a direct connection between two 15 mm pipes. Supplied as a 2-piece pack, it is intended for dependable, reusable pipework connections in mobile water system applications.
Technical Specifications
Article Number 17540474 Manufacturer Number WX1504 Description Equal Straight 15 mm Packing 2 pcs Pipe Size 15 mm to 15 mm Max Pressure (Hot Water) 6 bar (87 psi) Max Temperature (Hot Water) 65°C (150°F) Max Pressure (Cold Water) 12 bar (174 psi) Max Temperature (Cold Water) 20°C (68°F)
Features
- Double gripper design for strong pipe retention under pressure
- Cage collet helps eliminate leaks where fittings are installed close to tight bends
- Internal support ring secures the O-ring seal to reduce distortion and leakage under pressure
- Single-piece moulding for improved durability
- Collet cover helps prevent accidental pipe release
- No collet clips required to reduce installation time
- Pipework cut marks provide a visual guide for correct fitting depth
Product Details
- Installation: Make a straight, clean cut (using Whale cutters) and push the pipe into the fitting to the second internal stop.
- Release: Push back the grey collet into the fitting, hold it in, then pull the pipe out.
-
