ID
1281507
$ 301.28
1-2 weeks delivery time
-
+
The Whale BP1554 Gulper 220 24V grey wastewater pump is a self-priming diaphragm unit for shower and general wastewater that can pump a mixture of air and water and run dry without damage. It is specified at 13.4–14 LPM flow and uses a 19 mm (3/4 inch) ID hose connection, with a 360° rotating head for flexible horizontal or vertical installation and no filter requirement. Listed electrical data includes 24V DC operation with 1.2A or 1.75A current, a 2.5A recommended fuse, minimum 1.5 mm² (16 AWG) wire size, IP45 rating, CE marking, ISO conformity, and a 2-year warranty.
- Description
- Ask a Question
-

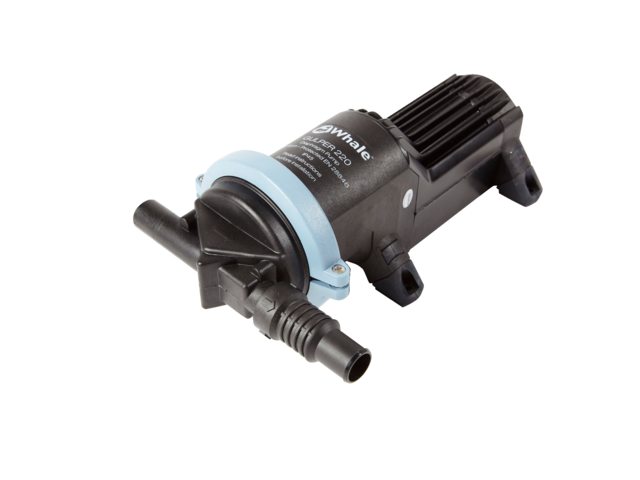

Whale Gulper 220 24V Grey Wastewater Diaphragm Pump
The Whale BP1554 Gulper 220 is a self-priming electric wastewater pump designed for shower and grey-water duties, including handling hair and gels. It can be mounted horizontally or vertically, rotates 360° for easier routing in tight spaces, operates without a filter to reduce clogging, and is designed to pump a mixture of air and water (including running dry without damage).
Technical Specifications
Article Number 17540126 Manufacturer Number BP1554 Voltage 24V DC Current (Listed) 1.2 A / 1.75 A Flow Rate (Listed) 13.4 L/min / 14 LPM (3 GPM / 3.7 US GPM) Maximum Combined Head and Lift 4 m (13.1 ft) Maximum Pump Head Range 2.3 to 4.27 m Maximum Recommended Head 3 m (9.8 ft) Self-Priming Up to 3 m (9.8 ft / 10 ft listed) Hose Size 19 mm (3/4 inch) ID hose Hose Connection Ø 19 mm Connection (Listed) 1/2 inch BSP; 3/4 inch hose connection; 1 inch hose connection Recommended Fuse 2.5 A Minimum Wire Size 1.5 mm² (16 AWG) Ingress Protection Rating IP45 Approvals / Conformity (Listed) CE Marked; ISO8846; ISO8849; ISO10133; ISO15083 Body Material (Listed) Aluminium and glass-filled nylon Dimensions (H x W x L) 117 mm x 173 mm x 273 mm (4-5/8 inch x 6.8 inch x 10.75 inch) Base Dimensions 135 mm x 111 mm (5.3 inch x 4.75 inch) Shipping Weight 2.20 kg Country of Origin United Kingdom Warranty 2 years Packing 1 unit Product Portfolio (Listed) Electric bilge pumps
Features
- Self-priming design for flexible installation
- No filter required to help prevent clogging and simplify maintenance
- Mountable in any direction (horizontal or vertical)
- 360° rotating head for easier hose routing in confined spaces
- Pumps a mixture of air and water and can run dry without damage
- Large single diaphragm with virtually non-choke valves
- Double outlet valve to help ensure continuous flow
- Rubber feet to reduce vibration (listed)
Product Details
- Designed as a specialized wastewater pump for shower waste (hair and gels).
- Listed as a replacement option: replaces Flojet Shower Waste Drain Pump (closest alternative 509433).
-
