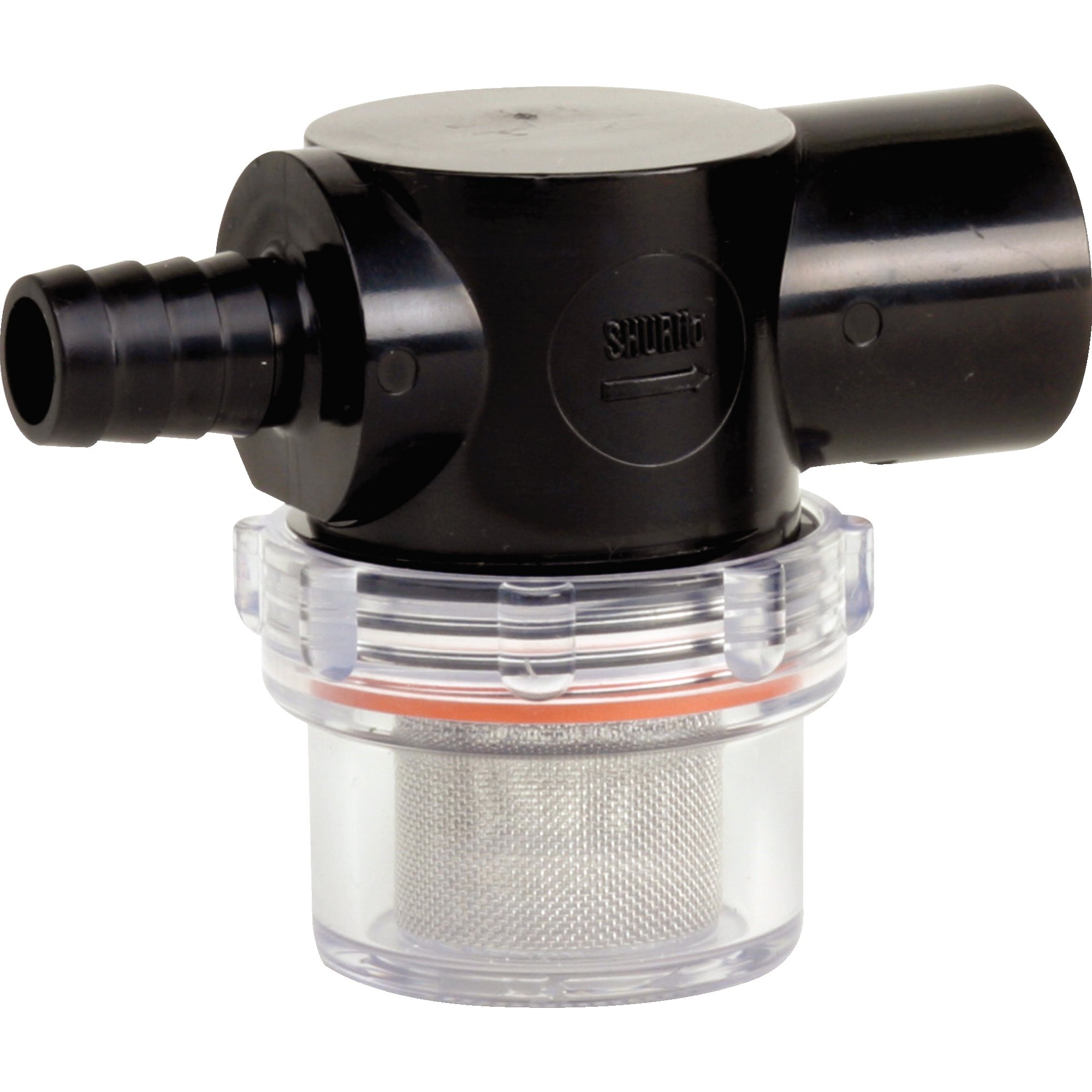

SHURflo Twist-On In-Line Water Strainers

ID 1397393

$ 30.43

1-2 weeks delivery time

Item:

12 mm Barb × 1/2" Female
1/2" Male × 1/2" Female
12 mm Barb × 12 mm Barb
1/2" Female × 13 mm Barb

SHURflo Twist-On In-Line Water Strainers designed for installation on the suction side of fresh water pumps to prevent debris and particles from entering the pump. Available with different combinations of 12–13 mm hose barb and 1/2" threaded connections. Selected versions provide 50 µm filtration with a stainless steel mesh screen, transparent inspection bowl, EPDM gasket and a maximum operating temperature of 48°C.

Description
Ask a Question

SHURflo Twist-On In-Line Water Strainers – Threaded & Hose Barb Connections, 12–13 mm

SHURflo Twist-On In-Line Water Strainers are designed for installation on the suction side of fresh water pumps, helping prevent debris and particles from entering the pump. The range includes several connection configurations with hose barb and threaded ports for different water system installations.

The specified 50 µm versions feature a stainless steel mesh screen and transparent inspection bowl for visual monitoring of accumulated debris. These strainers can be easily disassembled for cleaning and reassembled after servicing. Depending on the version and pump configuration, the strainer can be installed in the water inlet line or connected directly to the pump head.

Available Connection Types

1/2" female thread × 13 mm hose connection
Ø12 mm (1/2") hose barb × 1/2"-14 NPSM female thread
1/2" NPSM male thread × 1/2"-14 NPSM female thread
Ø12 mm (1/2") hose barb × Ø12 mm (1/2") hose barb

Technical Specifications

Brand: SHURflo
Product type: Twist-On In-Line Water Strainer
Installation: Pump suction side / water circuit inlet
Filtration for specified versions: 50 µm
Screen material for specified 50 µm versions: Stainless steel
Gasket for specified 50 µm versions: EPDM
Maximum operating temperature for specified 50 µm versions: 48°C
Transparent inspection bowl: Yes, on specified 50 µm versions

Available Variants

Product Code / SKU	Inlet Connection	Outlet Connection	Filtration	Dimensions	Barcode / EAN
SH255-325	1/2" female thread	13 mm hose	Not specified	Not specified	752324010271
22955	Ø12 mm (1/2") hose barb	1/2"-14 NPSM female thread	50 µm	61 × 81 mm	00752324009336
22956	1/2" NPSM male thread	1/2"-14 NPSM female thread	50 µm	61 × 76 mm	03162420229564
22958	Ø12 mm (1/2") hose barb	Ø12 mm (1/2") hose barb	50 µm	61 × 76 mm	00752324327966

Features of 50 µm Versions

Prevents debris and particles larger than 50 µm from entering the pump
Stainless steel mesh screen
Transparent bowl for visual inspection
EPDM gasket
Easy disassembly, cleaning and reassembly
Maximum operating temperature: 48°C
