ID
1348203
$ 2,618.37
1-2 weeks delivery time
-
+
The Sherwood P1735X is a self-priming cooling water impeller pump from the 17000 series with a bronze pump body for flange mounting. It uses a shaft-end drive with Woodruff key and lock nut (shaft with key and thread), is a cam version, and includes a neoprene impeller. The pump has flange connections (including square flange connections with 4 fixing points) and a shipping weight of 8.80 kg.
- Description
- Ask a Question
-

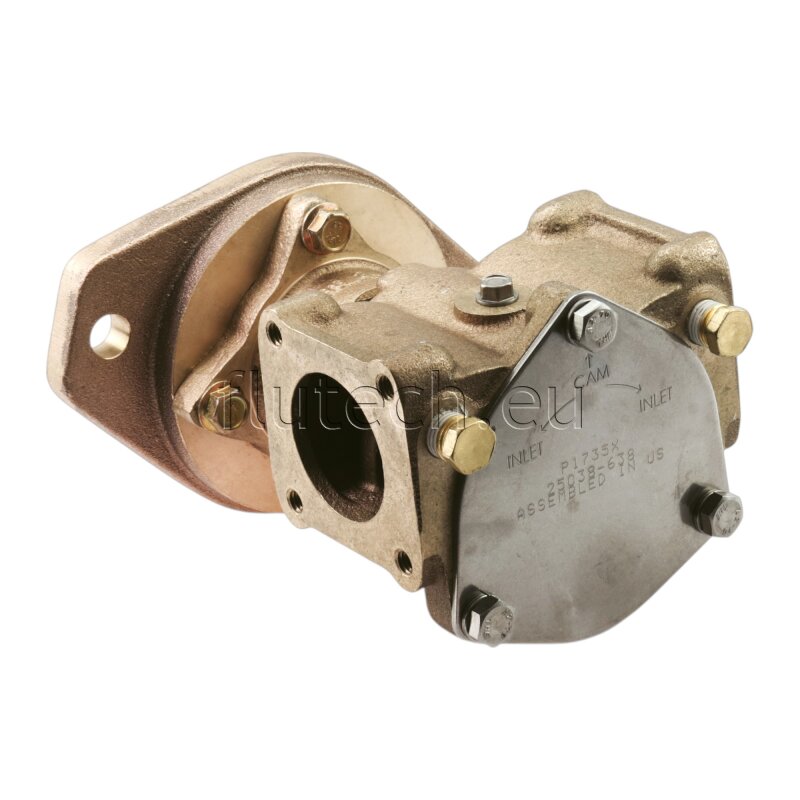

Sherwood P1735X Self-Priming Bronze Cooling Water Pump
The Sherwood P1735X is a self-priming cooling water impeller pump from the Sherwood 17000 pump series. It features a bronze housing designed for flange mounting and a shaft-end drive arrangement for engine cooling-water circulation applications.
Technical Specifications
Product Portfolio Impeller pumps; Cooling water pumps Brand Sherwood Connection Flange Mounting Type Flange Impeller Hub Spline Drive Drive/Shaft End Shaft with key and thread Shipping Weight 8.80 kg
Features
- Self-priming design (17000 pump series)
- Bronze pump body
- Flange mounting with 2 fixing points
- Square flange connections with 4 fixing points
- Drive via shaft end with Woodruff key and lock nut
- Cam version
- Includes neoprene impeller
Compatibility
- John Deere 4045AFM85
- John Deere 4045SFM85
- John Deere 6068AFM75
- John Deere 6068AFM85
Product Details
- Alternative to Sherwood P1735X
- Alternative to Sherwood P1735-02
- Alternative to Sherwood P1735-05
- Alternative to John Deere RE538663
- Alternative to John Deere DZ114697
-
