ID
1331026
$ 637.49
1-2 weeks delivery time
-
+
The Johnson Pump AquaT Silent Electric compact toilet 80-47231-01 delivers quiet, hygienic flushing for marine toilet rooms using a reliable Aqua Jet diaphragm pump and an integrated drain pump. Built with a white vitreous porcelain bowl and corrosion-resistant parts, it is designed to be durable and easy to clean in marine environments. The system runs on 12V power and is supplied with user controls (including a two-way switch and a 3-way control panel) to manage flushing and draining.
- Description
- Ask a Question
-

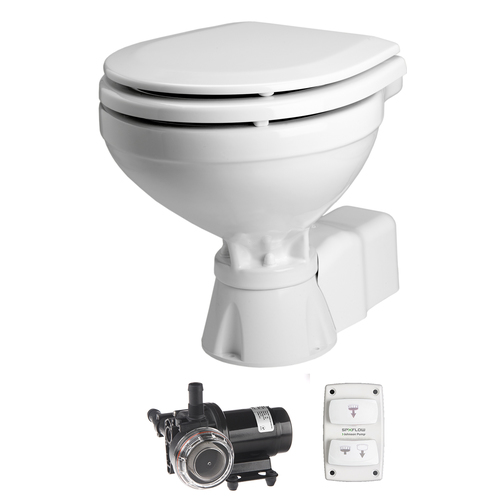

Johnson Pump 80-47231-01 AquaT Silent Electric Compact Marine Toilet System
The Johnson Pump AquaT Silent Electric is a compact electric marine toilet designed to provide quiet, efficient flushing and dependable draining in onboard toilet rooms. Its white vitreous porcelain bowl and corrosion-resistant components support long-term durability and easy cleaning, while the included pumps and controls are aimed at simple, hygienic daily operation.
Application
- Marine toilet rooms
- Compact electric marine toilet installation
Technical Specifications
Brand Johnson Pump Part Number 80-47231-01 Article Number 66804723101 EAN 8719182079606 Product Portfolio Electric Toilets Model Compact Voltage 12V Current 13A Maximum Power Consumption 20A Recommended Fuse 25A Weight (Listed) 21 lbs Weight (Listed) 9.6 kg Shipping Weight 17.00 kg Inlet Diameter 19 mm Outlet Diameters 38 mm and 25 mm
Dimensions
- A: 120 mm
- B: 390 mm
- C: 335 mm
- D: 420 mm
- E: 215 mm
- F: 290 mm
- G: 700 mm
- Height: 39.5 cm
- Width: 34.0 cm
- Depth: 44.1 cm (with lid closed and waste water pump facing backwards)
Product Details
- Bowl material: White vitreous porcelain
- Bowl description: Hygienic bowl made of pure white glass ceramic
- Construction: Corrosion-resistant parts throughout
- Flush pump: Aqua Jet diaphragm pump (proven design)
- Flush pump performance (listed): Self-priming Aqua-Jet pump, 13 liters/minute, with 19 mm (3/4 in) hose connections and filter
- Drain system: Built-in pump for draining and a powerful waste water pump
- Controls: Two-way switch and supplied 3-way control panel
- Control panel function (listed): Two buttons controlling flushing and draining (Button 1: drain and flush; Button 2: flush or drain)
- Seat: Soft-close plastic seat and cover (also listed as plastic seat and cover)
- Connections (listed): 38 mm (1-1/2 in) outlet, 19 mm (3/4 in) inlet
- Installation aids (listed): Flexible hole pattern on the base for replacement with common toilet footprints; multi-angled drain elbow that is 360° rotatable; standard fastening enables maintenance without special tools
- Included components (listed): Includes 10-13399-05 or 10-13399-03 Johnson WD 3.5 water pump 12V
- Available models (listed): Compact and Comfort
Features
- Compact electric marine toilet made from white vitreous porcelain
- Quiet, low-noise flushing operation due to separate waste water and flush pump
- Corrosion-resistant parts throughout for enhanced durability
- Quiet, hygienic, and reliable operation
- Easy control via supplied switches and control panel
-
