Johnson Pump 32-1750UC-01-24 - Ultima Combo Submersible Bilge Pump for Automatic Operation

ID 1332490

1-2 weeks delivery time

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The Johnson Pump 32-1750UC-01-24 Ultima Combo bilge pump unit combines a submersible cartridge-style bilge pump with the integrated Ultima Switch for automatic operation. It is specified as a 24V Ultima Combo L750 model and is part of the Ultima Combo cartridge pump 500–1250 series, with improved easy-to-install Dura-Port discharge fittings designed to reduce stress cracking from over-tightened hose clamps. The package includes both a straight Dura-Port fitting and a 90° Dura-Port elbow, with listed performance up to 73 l/min (1150 GPH) at 0 m head (13.6 V) and a low 2 A current draw supported by a 3 A fuse.

Description
Ask a Question

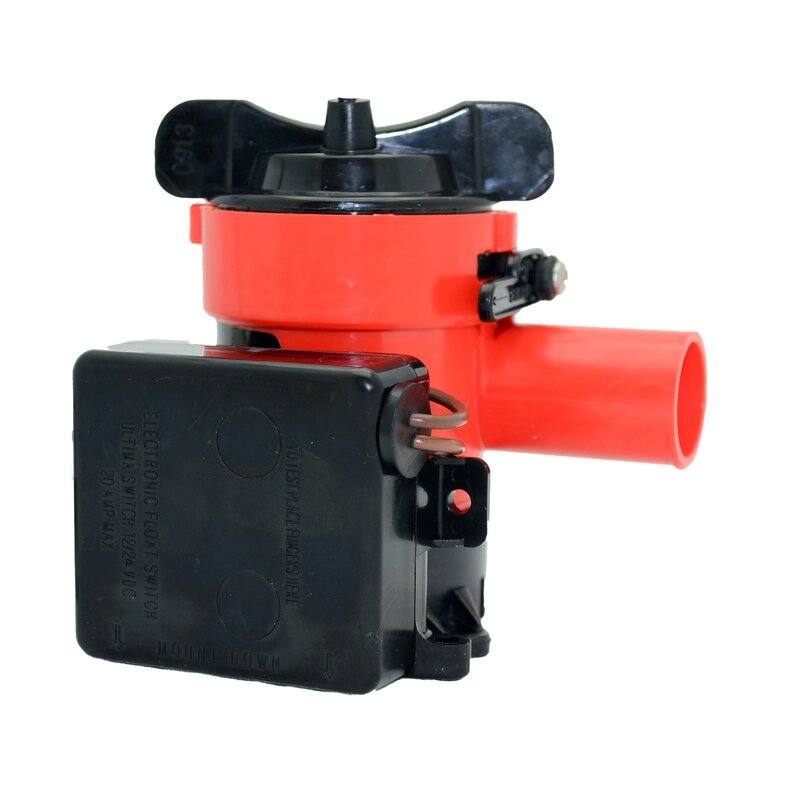

Johnson Pump 32-1750UC-01-24 Ultima Combo Automatic Bilge Pump Unit

The Johnson Pump Ultima Combo is a submersible bilge pump solution built for automatic operation with cartridge-style bilge pumps. It uses the Ultima Switch switch to support automatic bilge pumping and includes discharge fittings designed for easier installation.

Application

Automatic operation with cartridge bilge pumps
Submersible bilge pump applications
Ultima Combo cartridge pump 500–1250 series

Technical Specifications

Brand	Johnson Pump
Part Number	32-1750UC-01-24
Model	Ultima Combo Bilge Pump L750 24V
Operating Voltage (As Listed)	24 V
Flow at 3 ft (0.9 m) Head (13.6 V)	60 l/min (952 GPH)
Flow at 0 m Head (13.6 V)	73 l/min (1150 GPH)
Current Consumption	2 A
Fuse	3 A
Connection	1?"
Shipping Weight	0.70 kg
Product Portfolio	Submersible bilge pumps

Product Details

Switch: Equipped with the Ultima Switch switch
Discharge Fittings: Improved design with easy-to-install Dura-Port drain fittings intended to help prevent cracking caused by stress from over-tightened hose clamps
Included Fittings: Straight Dura-Port fitting and 90° Dura-Port elbow

Features

Enables automatic operation with cartridge-style bilge pumps
Includes two Dura-Port fitting options for installation flexibility
Specified current draw of 2 A with a recommended 3 A fuse
