SKU:
ALP 6609819B
€ 102,80
1-2 weeks delivery time
-
+

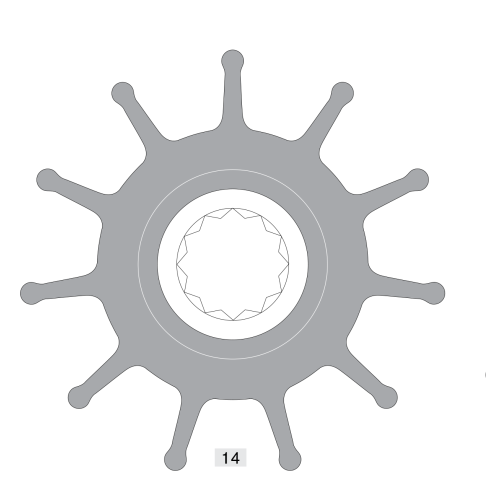

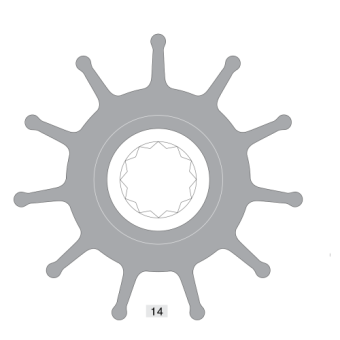

The Johnson Pump 09-819B is a neoprene flexible impeller kit designed for routine water-pumping applications such as engine cooling, wash down, and bilge pumping. It is compatible with various Johnson F8 pump models and Volvo Penta pumps, with a diameter of 95mm and depth of 63mm, and features a spline shaft design.
- Description
- Ask a Question
-
Johnson Pump 09-819B - Impeller Kit for F8 & Volvo Penta Pumps (Neoprene)
The Johnson 09-819B neoprene flexible impeller is intended for routine water-pumping needs like engine cooling, water transfer, wash down, and bilge pumping. It is compatible with multiple models in the F8 series of Johnson Pumps and some Volvo Penta models, matching the listed impeller dimensions.
- Fits F8B-3, F8B-303, F8B-3000 (TSS), F8B-3020, and F8B-3030 pump models, with parts 10-13024-1, 10-13024-3, 10-13024-5, 10-13175-01, 10-22047-1, and 10-22047-3.
- Compatible with F8B-5, F8B-5000 (TSS), F8B-5001 (MC), and F8B-50017 (MC) pump models with part numbers 10-13022-83, 10-13022-95, 10-13022-96, 10-13022-98, 10-13022-99, 10-13025-99, 10-13176-99, 10-22162-, 10-24559-01, and 10-24559-02.
- Fits F8B-8, F8B-803, F8B-8007, and F8B-8037 pumps with part numbers 10-13021-1 through 10-13021-17 and additional variants 10-13021-91, 10-13021-92, 10-13021-95, and 10-13021-96.
- Compatible with F8B-9, F8B-900, F8B-902, F8B-903, and F8B-905 pump models including parts 10-13088-01, 10-13088-02, 10-13088-03, 10-13096-01, 10-13096-02, 10-13180-01, 10-13263-01, 10-13305-01, 10-21915-2, 10-22096 series (1-3), 10-24026-1, 10-24027-1, 10-24091 series (1-3), 10-24096 series (1-4), 10-24130-3, 10-24181 series (1-4), and 10-24315-01.
- Fits Volvo Penta pumps 3830699 and 3836564.
- Article number: 6609819B
- EAN number: 8719182044925
- Pump: F8
- Reference: 14
- Material: Neoprene (for cooling)
- Diameter: Ø95mm / 3.74"
- Shaft dimension: Splines
- Depth: 63mm / 2.48"
- Replaces: 836-0001 / 17935-0001
-
