SKU:
ALP 6609814B
€ 167,46
1-2 weeks delivery time
-
+

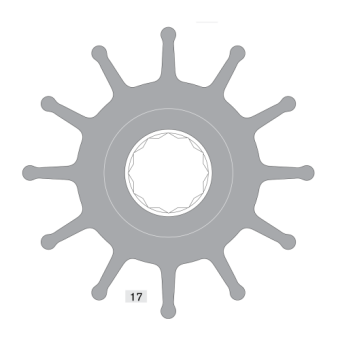

The Johnson Pump 09-814B is a neoprene impeller for F9 pumps, featuring a 95mm diameter, 88.5mm depth, and spline shaft. It fits various pump models from brands like Volvo, Scania, and Orbitrade, and replaces models such as 21676-0001 and 17936-0001.
- Description
- Ask a Question
-
Johnson Pump 09-814B - Impeller Kit for F9 Pumps (Neoprene)
This original Johnson neoprene flexible impeller is designed for common water-pumping tasks including engine cooling, water transfer, wash down, and bilge water pumping. It fits select models in the F9 range of Johnson Pumps, matching the following impeller sizes and pump references.
- Fits pump models F9B-3600, F9B-3607, F9B-3620, F9B-3627, F9B-3630, and F9B-3637 with part numbers 10-13026-4, 10-13026-5, 10-13026-6, 10-13026-10, 10-13026-11, and 10-13026-12.
- Compatible with F9B-5, F9B-5600 (TSS/VF), and F9B-5607 pump models including parts 10-13027-63, 10-13027-98, 10-13027-99, 10-13178-99, 10-13226-99, and 10-24161-1.
- Fits F9B-9, F9B-902, F9B-903, and F9B-905 models with part numbers 10-13080-01, 10-13087-01, 10-13095-01, 10-13095-02, 10-13166-01, 10-13171-01, 10-24006 series (1-4), 10-24159 series (1-2), 10-24308 series (01-03), and 10-24430-01.
- Compatible with Volvo Penta pumps 846105 and 3837935.
- Fits Scania pumps 1785016, 1785018, and 1785244.
- Suitable for Orbitrade pump model 17935.
- Article number: 6609814B
- EAN number: 8719182044925
- Pump: F9
- Reference: 17
- Material: Neoprene (for cooling)
- Diameter: Ø95mm / 3.74"
- Shaft dimension: Splines
- Depth: 88.5mm / 3.48"
- Replaces: 21676-0001 / 17936-0001
-
