SKU:
ALP 6609802B
€ 159,19
1-2 weeks delivery time
-
+

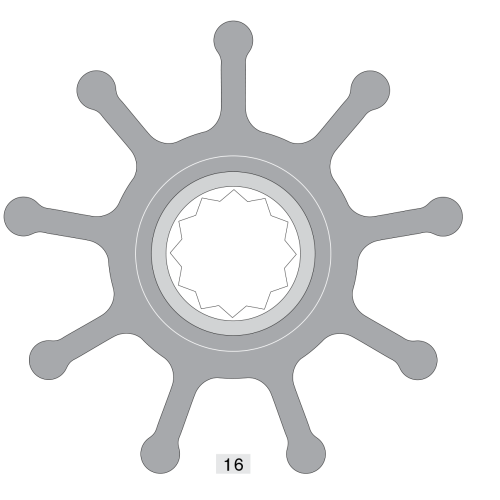

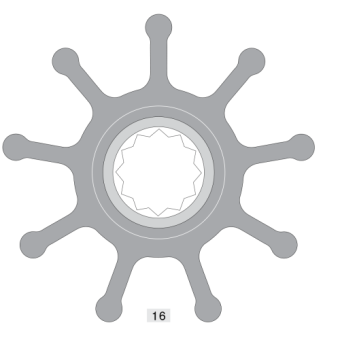

The Johnson Pump 09-802B is a neoprene impeller for F9 and Nanni pumps, designed for cooling and water transfer. It features 9 blades, spline drive, a 95mm diameter, and an 88.5mm depth, and replaces the 6760-0001 model.
- Description
- Ask a Question
-
Johnson Pump 09-802B - Neoprene Pump Impeller for Johnson F9 & Nanni Pumps (9 Blade)
The Johnson Pump 09-802B is a genuine neoprene flexible impeller intended for various water pumping tasks including engine cooling, water transfer, wash down, and bilge pumping. It fits multiple Johnson F9 range pumps and selected Nanni pumps, matching the dimensions specified below.
- Material: Neoprene (for cooling)
- Suitable for pumps: F9B-3 (10-22346-1), F9B-303 (10-22346-2), F9B-3000 (10-13026-1), F9B-3000-TSS (10-13177-01), F9B-3000-VF (10-13225-01), F9B-3007 (10-13026-7), F9B-3020 (10-13026-3), F9B-3027 (10-13026-9), F9B-3030 (10-13026-2), F9B-3037 (10-13026-8)
- Also fits: F9B-5 (10-22362-), F9B-9 (10-13064-1, 10-13064-2, 10-13145-01, 10-24072-1, 10-24239-1, 10-24239-2), F9B-900 (10-24090-1), F9B-903 (10-24090-2)
- Compatible with MAN pumps: 50.06500-7011 & 50.06500-7012
- Diameter: Ø95mm / 3.74"
- Shaft Dimension: Splines
- Depth: 88.5mm / 3.48"
- Replaces: 6760-0001
- Article Number: 6609802B
- EAN Number: 8719182044925
- Pump: F9
- Reference: 16
-
