ID
1265019
$ 220.29
1-2 weeks delivery time
-
+
The Johnson Pump 09-45073 pressure switch enables automatic on/off control for deck wash pump systems, activating self-priming electric pumps when water is needed. It provides adjustable pressure settings with a 6 psi cut-in and a 30 psi cut-out, and connects via a 3/8" BSP female threaded port. Rated up to 16A, it supports 230V AC at 16A and 12V DC at 16A, and it includes a 3/8" T-fitting and a non-return valve for straightforward installation.
- Description
- Ask a Question
-

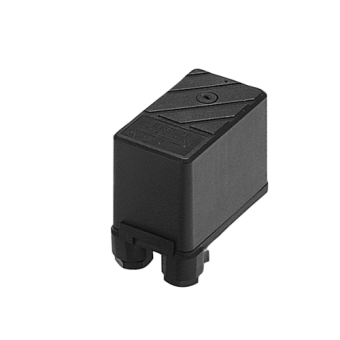

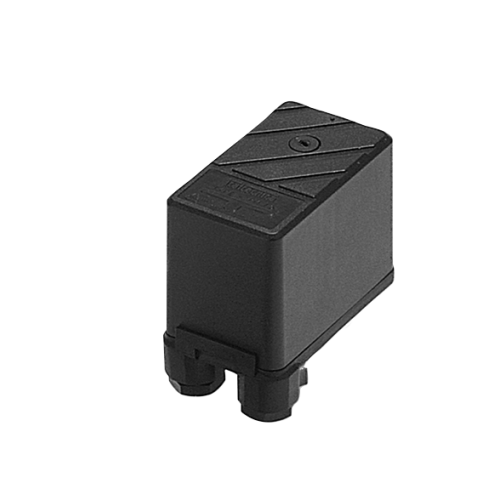

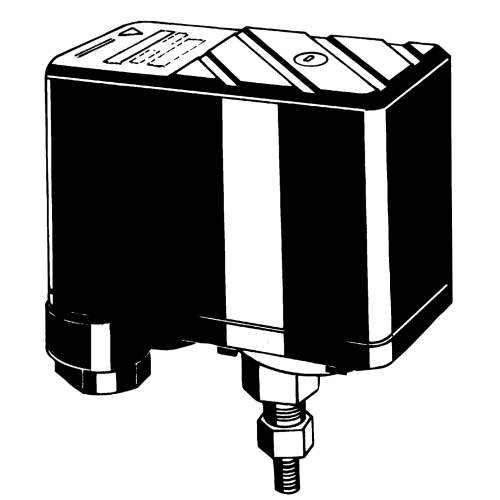

Johnson Pump 09-45073 Automatic Pressure Switch Unit
The Johnson Pump 09-45073 is a pressure switch designed to automate pump activation in deck wash applications. With adjustable cut-in and cut-out pressure settings, it helps ensure consistent operation for self-priming electric pumps and systems where automatic switching is required.
Application
- Deck wash pumps
- Self-priming electric pumps
- Pumps with an electromagnetic clutch
Technical Specifications
Article Number 660945073 Pressure Settings Cut-In: 6 psi; Cut-Out: 30 psi Connector 3/8" BSP female threaded connector Maximum Current 16A Electrical Capacity 230V AC: 16A; 12V DC: 16A Shipping Weight 0.90 kg
Product Details
- Model: 09-45073
- Type: Pressure switch
- Includes: 3/8" T-fitting and non-return valve
Features
- Automatic activation when water is needed
- Adjustable pressure control from 6 psi to 30 psi
- Designed for self-priming electric pump operation
- 3/8" BSP female connection for integration into washdown plumbing
-
