The Johnson Pump 09-1052S-9 is a 6-blade nitrile impeller built for F3 pump models, particularly suited for use with diesel or light oils. It features a 45.2mm diameter, 12.8mm depth, and an 8mm flat shaft, and is compatible with various voltage and model configurations.
- Description
- Ask a Question
-

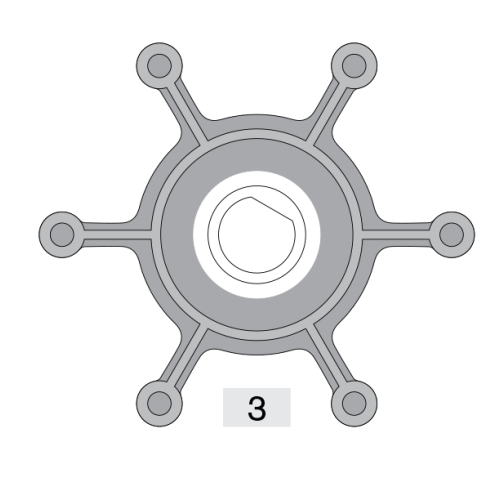

Johnson Pump 09-1052S-9 - Nitrile Pump Impeller for Johnson F3 Pump Models (6 Blade)
This authentic Johnson nitrile flexible impeller is designed for use in environments where diesel or light oils are present. It fits several models within the F3 series of Johnson Pumps, matching the specific impeller dimensions provided below.
- Compatible with F3B-12V pumps (10-22352-1, 10-24123-1, 10-24123-2) and F3B-24V pumps (10-22352-2)
- Fits F3B-19 12V pumps (10-24182-1, 10-24182-7, 10-24516-01, 10-24516-05), F3B-19 24V pumps (10-24182-2, 10-24182-8, 10-24516-02, 10-24516-06), F3B-19 110V pumps (10-24551-02, 10-24551-04), F3B-19 230V pumps (10-24551-01, 10-24551-03), F3B-1907 12V pumps (10-24182-3, 10-24516-03), and F3B-1907 24V pumps (10-24182-4, 10-24516-04)
- Compatible with F3P10 pumps (10-32579-1), F3P10-12V pumps (10-22353-1), and F3P10-24V pumps (10-22353-2)
- Works with F3S-19 110V pumps (10-24565-02), F3S-19 230V pumps (10-24565-01), F3S-19 1ph 110V pumps (10-24609-02), and F3S-19 1ph 230V pumps (10-24609-01)
- Suitable for TA3P10-19 12V pumps (10-24236-1, 10-24236-2, 10-24453-04), TA3P10-19 24V pumps (10-24453-05), TA3P10-1907 12V pumps (10-24453-01), and TA3P10-1907 24V pumps (10-24453-02)
- Article Number: 66091052S-9
- EAN Number: 8719182044925
- Pump Model: TA3P10
- Reference: 3
- Material: Nitrile (oil resistant)
- Diameter: Ø45,2mm / 1.78"
- Shaft Dimension: Ø8mm / 0.31" Flat
- Depth: 12,8mm / 0.5"
-
