The Flojet T151F-36N7-1P is a 12V DC Triplex Series industrial diaphragm pump delivering 1.5 GPM (5.7 LPM), with polypropylene pump head, Santoprene diaphragm, Viton seals, 3/8" FNPT ports, internal bypass, self-priming, dry-run capable, intermittent duty, 9-13.6 VDC, fluid temperature 40-140°F, ideal for fluid transfer, spraying, cooling, filtration, dispensing, and pressure boosting.
- Description
- Ask a Question
-

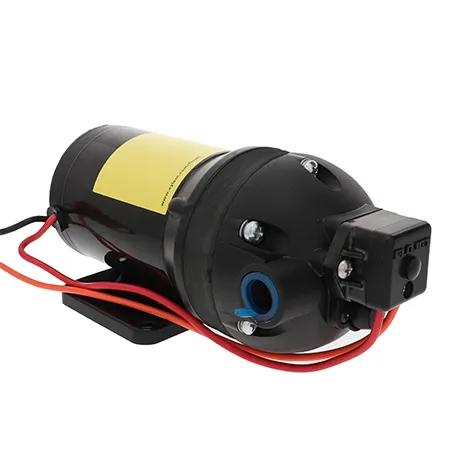

Flojet T151F-36N7-1P - Triplex Series Industrial Diaphragm Pump 12VDC 1.5GPM (5.7 LPM) S/V NSW BP50 (3.4 Bar)
The Flojet T151F-36N7-1P is a 12 Volt DC Triplex Series industrial diaphragm pump delivering 1.5 GPM (5.7 L/min). With a robust pump head design, 3/8" FNPT ports, Santoprene diaphragm, and Viton seals, it is self-priming and can run dry for extended periods. The pump features an internal bypass, maximum operating pressure of 50 PSI, and supports open flow applications. Voltage range is 9-13.6 VDC and the fluid temperature range is 40-140°F. Designed for intermittent duty, it is ideal for industrial fluid transfer, spraying, cooling, filtration, dispensing, and pressure boosting, while co-injection mold diaphragm technology reduces potential leak paths.
Technical Data
Voltage 12 VDC (9-13.6 VDC) Flow Rate 1.5 GPM (5.7 Lpm) Max Operating Pressure 50 PSI Max Inlet Pressure 30 PSI Pump Head Polypropylene Diaphragm Santoprene Seals Viton Ports 3/8" FNPT Internal Bypass Yes Fluid Temperature 40-140°F Duty Intermittent Wire Connection Stripped Wire
Brand: Flojet
Article: T151F-36N7-1P -
