The Flojet R3426348A water pressure system is a 24-volt 3-chamber diaphragm pump with an integrated bypass to reduce pulsations. It delivers up to 8 liters per minute, is self-priming, runs dry without damage, and includes various hose port options for smooth water flow.
- Description
- Ask a Question
-

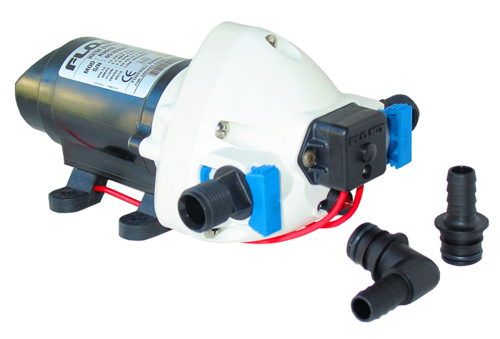

Flojet R3426348A - Water Pressure System 24 Volt - 8 Ltr/Min With Bypass
This 3-chamber diaphragm pump with integrated bypass reduces pulsations, minimizing the need for a pressure tank and ensuring smooth water flow.
- Order number: 00320417
- Supplier code: R3426348A
- Barcode: 705474200214
- Voltage: 24 Volts
- Output: Up to 8 liters per minute (2 GPM) at open flow
- Pressure switch activates between ~1 bar (15 psi) and 1.7 bar (25 psi)
- 3-chamber Santoprene diaphragm with EPDM valves
- Suitable for potable water systems with 2-3 outlets
- Self-priming up to 1.8 - 2 meters
- Runs dry without damage
- Bypass included for smoother flow and reduced cycling
- Snap-in ports: 2 x 1/2" QEST male thread straight, 1 x 13 mm (1/2") hose barb 90°, and 1 x 13 mm hose barb straight
- Amperage: 1.7 A; Fuse size: 5 A
- Dimensions (H x W x L): 12.1 cm x 10.8 cm x 22.9 cm (excluding hose ports)
- Power consumption: 4.4 A
- Weight: 1.6 kg
- Suction height: 2 m
- Alternative to Jabsco 31295-0094, Flojet R3426348A, R3426-348A
-
