The Flojet D71X000B is a Duplex II series diaphragm pump with a 12 Volt DC motor, polypropylene body construction, Buna diaphragm, and Buna check valve. It uses 3/8 inch NPT female inlet and discharge ports and includes a 50 PSI pressure bypass (with an external bypass system that bypasses flow internally when pressure is over 60 PSI). The pump is self-priming up to 8 ft (2.4 m), can run dry without damage, has a maximum temperature of 140 °F, and weighs 5 lbs.
- Description
- Ask a Question
-

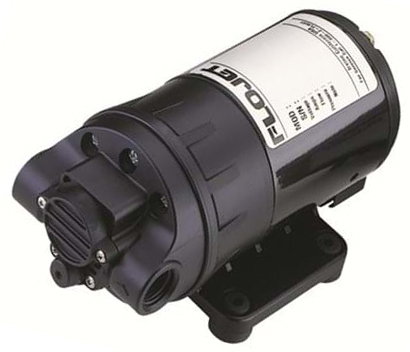

Flojet Duplex II 12V DC Diaphragm Pump Assembly
The Flojet D71X000B is a Duplex II series diaphragm pump for fluid transfer and general agricultural use, built with a polypropylene pump body and Buna elastomer components. It is designed for intermittent duty cycles, is self-priming, and can run dry without damage. The unit uses an external bypass system and will continue to run until power is manually turned off.
Technical Specifications
Pump Type Duplex II diaphragm pump Motor Voltage 12 Volt DC Body Construction Polypropylene Diaphragm Material Buna Check Valve Material Buna Pressure Bypass 50 PSI External Bypass Operation Bypasses flow internally when pressure is over 60 PSI Inlet Port 3/8 inch NPT female Discharge Port 3/8 inch NPT female Self-Priming Up to 8 ft (2.4 m) Run-Dry Capability Can run dry without damage Maximum Temperature 140 °F Weight 5 lbs Maximum Inlet Pressure 30 PSI (2.1 bar) Check Valve Cracking Pressure (If Used) No more than 2 PSI (0.14 bar) Recommended Inlet Strainer Minimum 40 mesh strainer or filter Pump Head Orientation Head may be rotated in 90 degree increments
Features
- Polypropylene body with Buna diaphragm and Buna check valve
- Self-priming design (vertical prime varies with fluid viscosity and installation)
- External bypass system for high-pressure operation
- Intermittent duty design; can be run continuously for short periods of time
- Suitable for liquid transfer, spraying, cooling, circulation, filtration, and dispensing
Product Details
- Installation: Mount in a dry, adequately ventilated area; if installed outdoors, shield from water, dust, sunlight, and wash down spray.
- Use limitations: Do not use to pump flammable fluids (gasoline, kerosene, fuel oil, etc.) and do not use in an explosive environment.
- Plumbing guidance: Tubing should be a minimum of 3/8 inch ID and at least 20 inches in length; do not crimp or kink tubing. Use of check valves may interfere with priming.
- Wiring notes: Follow applicable electrical and safety codes. On this 12 volt DC pump the red lead is positive (battery plus) and the black lead is ground (battery minus). Use T6 AWG wire minimum and a fuse to protect system wiring and components.
-
