The Flojet Duplex II diaphragm pump is a 115V AC demand-duty unit with an integrated 60 PSI pressure switch and a motor supplied with power cord and plug. It features a polypropylene pump body, EPDM diaphragm, Santoprene check valve, and a medium-pressure cam, with 3/8 inch NPT female inlet and discharge ports. The pump is self-priming up to 8 ft (2.4 m), can run dry without damage, has a maximum temperature rating of 140°F, and weighs 6 lbs.
- Description
- Ask a Question
-

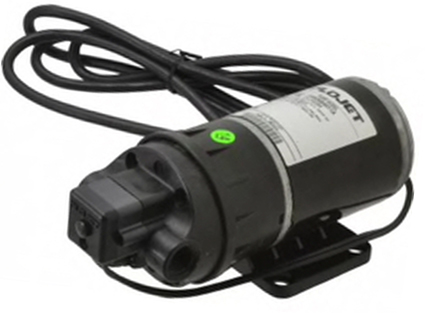

Duplex II Demand Diaphragm Pump With 60 PSI Pressure Switch
The Flojet D3822H5011 is a Flojet Duplex II series diaphragm pump built for general industrial liquid handling tasks such as transfer, spraying, cooling, circulation, filtration, and dispensing. It uses an automatic demand pressure switch to stop and restart the pump based on discharge pressure.
Technical Specifications
Series Duplex II Body Material Polypropylene Diaphragm Material EPDM Check Valve Material Santoprene Cam Type Medium Pressure Cam Pressure Switch Setting (Off Set Point) 60 PSI Motor Voltage 115V AC Motor Supply Power cord and plug Inlet Port 3/8 inch NPT female Discharge Port 3/8 inch NPT female Self-Priming Up to 8 ft (2.4 m) Maximum Fluid Temperature 140°F Weight 6 lbs
Features
- Demand operation with pressure switch that shuts off when the discharge valve is closed and restarts when pressure drops
- New diaphragm design combined with new valve design for higher dry vacuum capability
- Self-priming up to 8 ft (2.4 m)
- Can run dry without damage
- Pump head can be rotated in 90-degree increments to simplify plumbing
Product Details
- Designed for intermittent duty; continuous operation is intended only for short periods of time
- Do not use to pump flammable fluids (gasoline, kerosene, fuel oil, etc.) and do not use in an explosive environment
- Inlet pressure must not exceed 30 PSI (2.1 bar)
- If a check valve is installed in the plumbing, it must have a cracking pressure of no more than 2 PSI (0.14 bar)
- Recommended inlet protection: minimum 40 mesh strainer or filter
- Suggested suction tubing: minimum 3/8 inch ID and at least 20 inches long to reduce stress on pump ports
Available Parts
- Catalog # 20914-003A — Check Valve Assembly Kit (Duplex II Series Pumps, 115 VAC)
-
