ID
1348343
$ 41.30
1-2 weeks delivery time
-
+

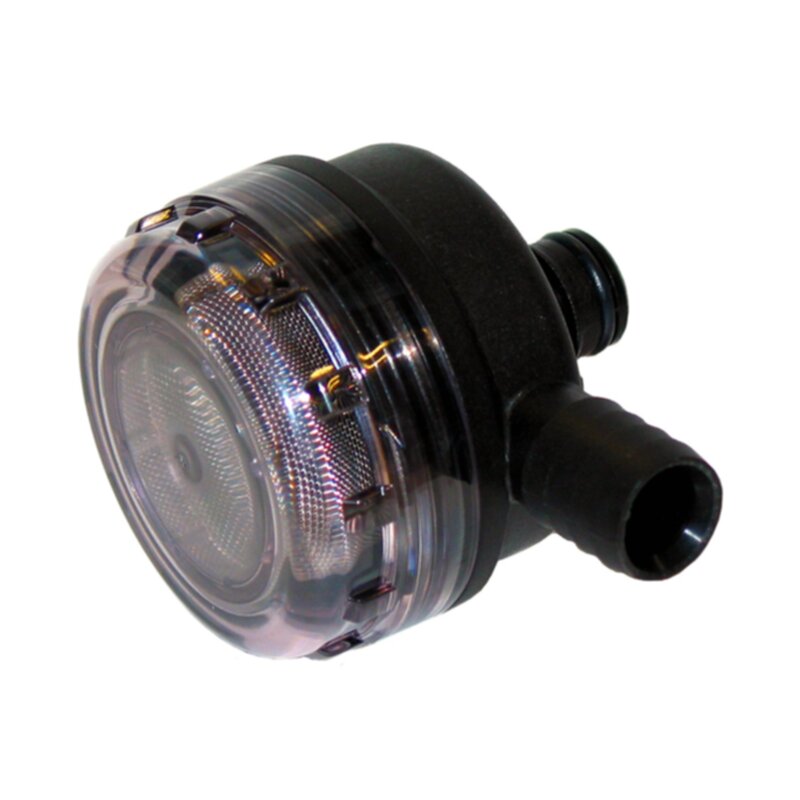

The Flojet 01740010 is a 90-degree inlet strainer with a 40 mesh stainless steel screen (approx. 0.4 mm openings) for protecting water system pumps from debris. It has a 19 mm (3/4 inch) hose inlet (inner diameter) and a male plug-in outlet port for 2–5 GPM Jabsco and Flojet pumps, and is rated up to 27 L/min (7 GPM), 5 bar (70 PSI), and 70°C. The unit uses a transparent screw-off housing for inspection and cleaning and measures approx. 96 x 70 x 83 mm, with a shipping weight of 0.15 kg.
- Description
- Ask a Question
-
Flojet 90 Degree Fine-Mesh Pump Inlet Strainer
The Flojet 01740010 is a 90-degree suction-side strainer designed to help protect pumps by filtering out particles before they can reach valves and internal components. Its transparent screw-off housing supports quick visual inspection and straightforward cleaning of the stainless steel screen.
Technical Specifications
Angle 90 Degree Inlet 19 mm (3/4 inch) hose connection (inner diameter) Outlet Male plug-in port for 2–5 GPM pumps Screen 40 mesh per square inch (approx. 0.4 mm openings) Max Flow Rate 27 L/min (7 GPM) Max Pressure 5 bar (70 PSI) Max Temperature 70 °C Materials Base: Polypropylene; Cover: Polysulfone; Strainer: Stainless Steel; Cover O-Ring: Buna-N; Port O-Ring: EPDM Dimensions (Approx.) Length 96 mm; Width 70 mm; Height 83 mm Shipping Weight 0.15 kg
Compatibility
- 2–5 GPM Jabsco pumps (male plug-in port)
- 2–5 GPM Flojet pumps (male plug-in port)
- Alternative to Jabsco 46400-0010
Features
- Suitable for potable water and salt water applications
- Designed for water pressure systems and high pressure systems
- Helps prevent particles from jamming valves and causing pump breakdowns
- Transparent screw-off housing for easy inspection and cleaning
-
