ID
1340078
$ 2,609.52
1-2 weeks delivery time
-
+
The CEM bilge extractor fan VE 45/2 24 V is built for continuous operation, featuring a painted steel housing, polypropylene blades, and efficient airflow for demanding marine and industrial ventilation applications.
- Description
- Ask a Question
-

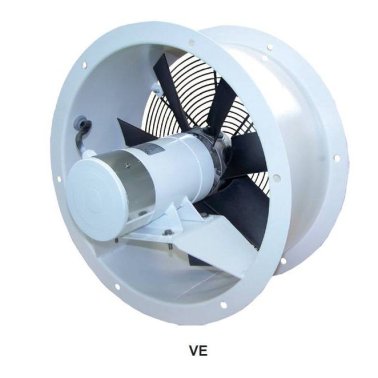

CEM VA02.452P.001 - Bilge Fan VE 45/2 24V Extractor 0.6 Kw
This bilge extractor fan is designed for continuous operation in demanding marine and industrial environments. It features a robust painted steel housing combined with polypropylene blades, ensuring durability and reliable airflow performance. The permanent magnet motor provides efficient operation with IP44 protection and insulation class F.

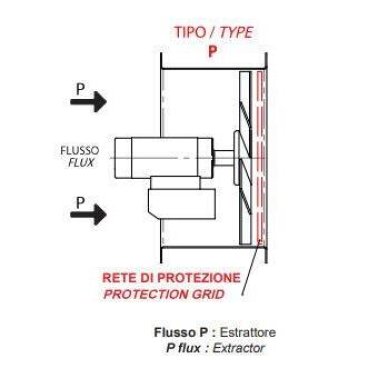

The airflow direction is configured from motor to fan, making it suitable for extraction applications where consistent ventilation is required.
Technical Data
Material Painted Steel Blade Material Polypropylene Temperature Range -5°C to +80°C Motor Type Permanent Magnet, Continuous Operation S1 Protection IP44 Insulation Class Class F Airflow Direction P-P1 = Motor to Fan Flow Rate 145 m³/min (8000 m³/h) Pressure 175 Pa Power 0.6 kW Voltage 24 V Weight 18 kg Color White
Brand: CEM
-
