ID
1361660
$ 10,630.15
1-2 weeks delivery time
Type:
- Ratio 3.60/1
- Ratio 4.48/1
The Technodrive TM200B hydraulic marine gearbox supports up to 3000 rpm input speed with gear ratio options 3.60:1 and 4.48:1. Weight 235 kg, oil capacity 4.0 L, operating pressure 14–18 bar, lubricating pressure 0.5–1.5 bar.
- Description
- Ask a Question
-

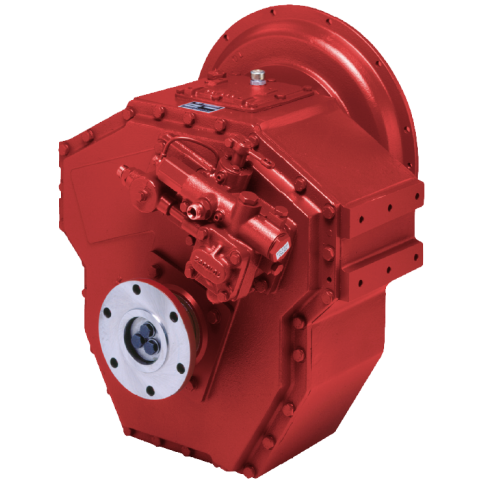

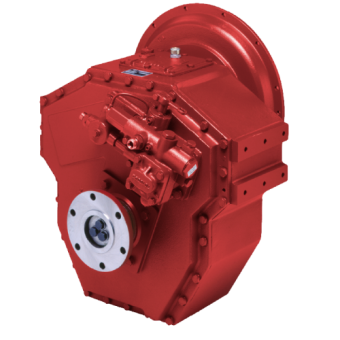

Technodrive Hydraulic Marine Gearbox TM200B with Gear Ratio Options
The Technodrive TM200B is a heavy-duty hydraulic marine gearbox designed for inboard engines operating under demanding conditions. It ensures reliable torque transmission and smooth performance in both forward and reverse operation.
Available in multiple gear ratio configurations, the TM200B allows optimal matching for different vessel types and propulsion requirements.
Available Gear Ratios
Ratio Max. Torque (Pleasure) Max. Torque (Commercial) Max. Input Speed 3.60:1 61 kgm 61 kgm 3000 rpm 4.48:1 61 kgm 61 kgm 3000 rpm
Key Features
- Hydraulic multi-disc clutch system
- Equal performance in forward and reverse
- Hardened and ground gear components
- Designed for heavy-duty marine applications
- Stable and efficient torque transmission
Technical Specifications
Brand Technodrive Model TM200B Max. Input Speed 3000 rpm Weight 235 kg Oil Capacity 4.0 L Lubricating Pressure 0.5 – 1.5 bar Operating Pressure 14 – 18 bar -
