Cannon Optimum 10 BT Metric/Feet Electric Downrigger, 3.5" LCD and Wireless Control

ID 1397481

$ 3,406.57

1-2 weeks delivery time

- +

Add to cart

The Cannon 1902335 Optimum 10 BT is an electric Metric/Feet downrigger with a 3.5 in full-color LCD, wireless connectivity, keypad control and One-Boat Network support. It features a 24–53 in (61–135 cm) telescopic stainless steel boom, composite spool with 400 ft (122 m) of 150 lb stainless steel cable, 250 ft/min (76 m/min) retrieval speed, two dual-axis adjustable rod holders and a 20 lb (9 kg) weight capacity. Functions include Auto Up, Short Stop, Soft Stop, Depth Cycling, five preset depths, Bottom Tracking, Waterline Zero, adjustable speeds and Positive Ion Control, with control available through the Cannon mobile app or compatible Humminbird® fish finders.

Description
Ask a Question

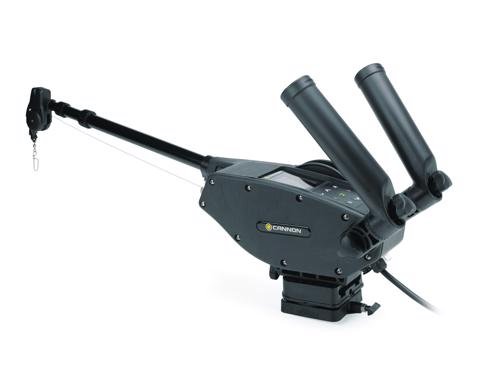

Cannon 1902335 Optimum 10 BT Metric/Feet Electric Downrigger with 3.5" LCD and Wireless Control

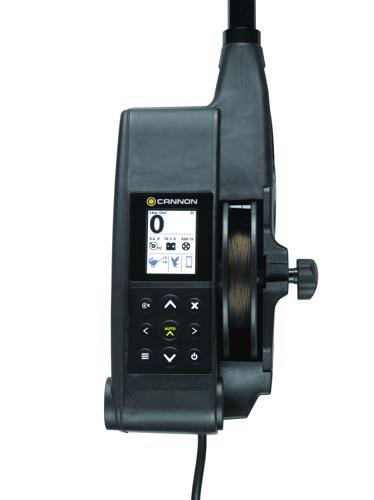

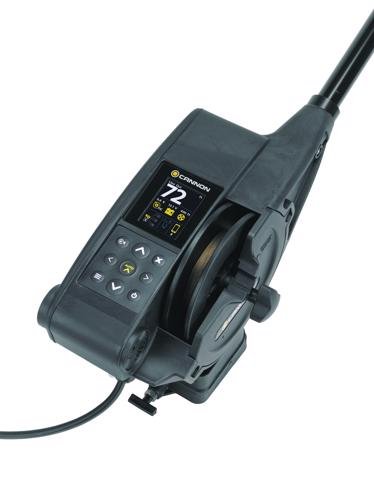

The Cannon Optimum 10 BT is an electric downrigger designed for precise trolling depth control with integrated wireless connectivity and a full-color 3.5-inch LCD display. The screen provides depth and trolling information, supports customizable settings and includes day and night display modes.

Up to four downriggers can be wirelessly networked and controlled through the Cannon mobile app or compatible Humminbird® fish finders using One-Boat Network™ integration. The system is also compatible with Fish Hawk™ X4D and Lithium Ultra System for monitoring depth, temperature and speed at the trolling weight.

The Optimum 10 BT provides multiple automated depth-control functions, including Auto Up, Short Stop, Soft Stop, Depth Cycling, Bottom Tracking and Waterline Zero. Up to five preset depths can be stored, and the system can remember the depth of the last catch.

Brand	Cannon
Model	Optimum 10 BT
Supplier Code	1902335
Operation Type	Electric
Control Method	Keypad
Display	3.5 in full-color LCD
Depth Counter	Digital
Boom Type	Telescopic
Boom Length	24–53 in (61–135 cm)
Boom Material	Stainless steel
Spool Material	Composite
Line on Spool	400 ft (122 m) / 150 lb stainless steel cable
Retrieval Speed	250 ft/min (76 m/min)
Weight Capacity	20 lb (9 kg)
Rod Holders	2 dual-axis adjustable
Mounting Base	Low-profile swivel base
Wireless Connectivity	Yes
Mobile App Control	Yes
One-Boat Network Ready	Yes
Positive Ion Control	Yes
Auto Up	Yes
Short Stop	Yes
Soft Stop	Yes
Depth Cycling	Yes
Preset Depth Storage	Up to 5 depths
Bottom Tracking Compatible	Yes
Adjustable Speeds	Yes
Waterline Zero	Yes
Removable Side Plate	Yes
Trolling Weight Storage Hook	Yes
Enclosed Boom End	Yes
Article Number	900449523
Technautic Item Code	00449523
EAN / Barcode	029402046881
Warranty	Limited lifetime

Smart Trolling Functions:

Wireless networking and control of up to four downriggers.
Control through the Cannon mobile app or compatible Humminbird® fish finders.
One-button Auto Up for automatic trolling weight retrieval.
Stores up to five preset trolling depths.
Remembers the depth of the last catch.
Depth Cycle automatically cycles the trolling weight through selected depths.
Bottom Tracking maintains a preset bait distance from the bottom.
Waterline Zero maintains the weight at a set distance below the waterline.
Short Stop and Soft Stop functions for controlled weight retrieval.
Positive Ion Control (PIC).
Fish Hawk™ X4D and Lithium Ultra System compatibility for depth, temperature and speed data at the weight.

Mechanical Features:

Telescopic stainless steel boom adjustable from 24 to 53 in (61 to 135 cm).
Composite spool with 400 ft (122 m) of 150 lb stainless steel cable.
Retrieval speed of 250 ft/min (76 m/min).
Two dual-axis adjustable rod holders.
Low-profile swivel mounting base.
Removable side plate for spool access.
Integrated trolling weight storage hook.
Enclosed boom end.
