ID
1351231
$ 1,281.98
1-2 weeks delivery time
-
+

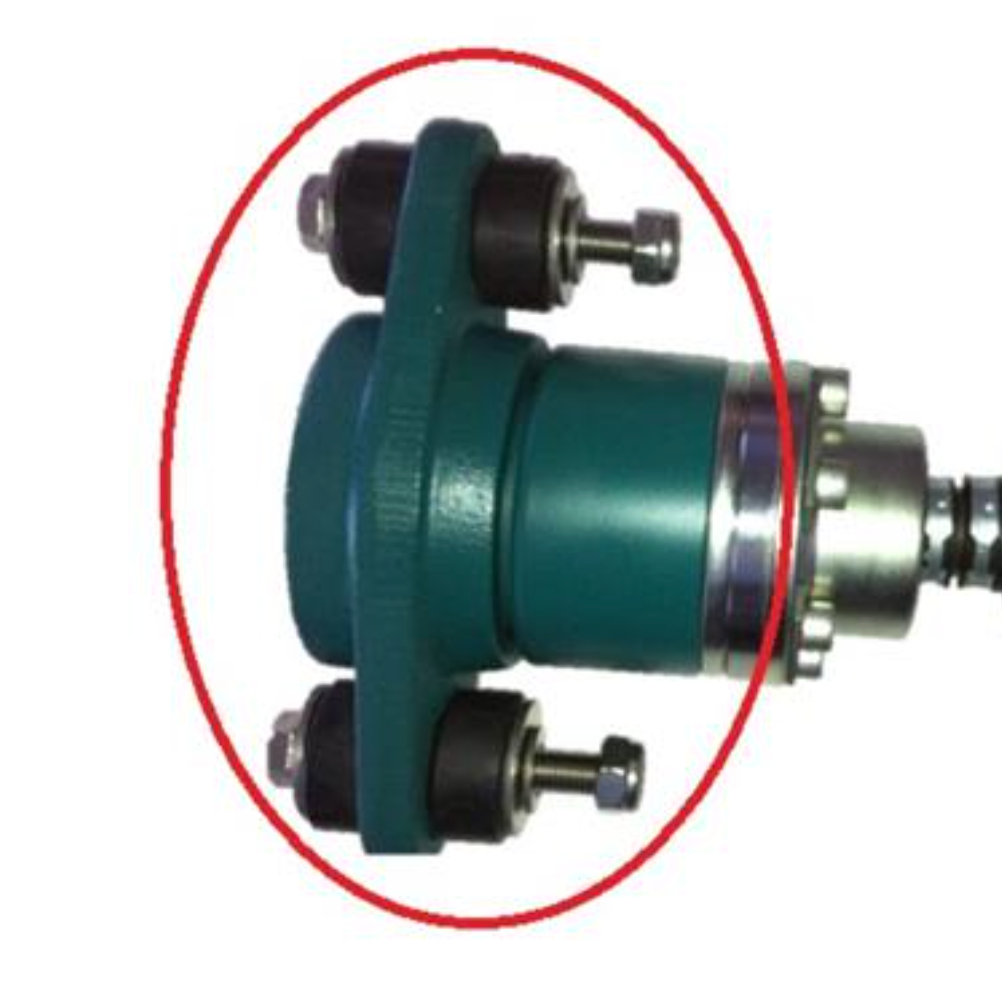

The Aquadrive 6110204 CVB 05.10 Moduline Thrust Bearing is a drivetrain component designed for propulsion shafts with a diameter of 25 mm, used in Aquadrive CVB 05.10 systems. The system supports smoother, quieter, and vibration-reduced propulsion by transferring propeller thrust through a flexible stop and allowing CV joint angles up to 16°. Aquadrive drivetrain systems are suitable for engines from 10 to 1500 HP. The unit is supplied as 1 piece and identified by product number 6110204.
- Description
- Ask a Question
-
Aquadrive 6110204 – CVB 05.10 Moduline Thrust Bearing for Ø25 mm Shaft
The Aquadrive 6110204 CVB 05.10 Moduline Thrust Bearing is a drivetrain component designed for marine propulsion systems using 25 mm propeller shafts. It forms part of the Aquadrive system, which is engineered to improve propulsion smoothness and reduce vibration and noise.
Aquadrive transmission systems have been developed for over 30 years and are widely used in marine propulsion installations. The system eliminates the need for precise engine alignment and allows CV joints to operate at angles up to 16°. Propeller thrust is absorbed through a flexible stop, reducing loads transmitted to the engine and improving drivetrain reliability.
Key Features
- Designed for Aquadrive CVB 05.10 propulsion systems
- Compatible with shaft diameter Ø25 mm
- Supports smooth and vibration-reduced propulsion
- CV joints allow operating angles up to 16°
- Flexible stop absorbs propeller thrust
- Reduces drivetrain noise and vibration
- Manufactured by Aquadrive
System Application
- Suitable for engines ranging from 10 to 1500 horsepower
- Used in marine propulsion drivetrain installations
Required Data for Correct System Selection
- Type of boat
- Engine power
- Maximum engine speed
- Gearbox reduction ratio
- Expected shaft angle
- Propeller shaft diameter
- Recreational or commercial use
- Average operating hours per year
Technical Specifications
Product Name Aquadrive CVB 05.10 Moduline Thrust Bearing Product Number 6110204 Brand Aquadrive Model CVB 05.10 Shaft Diameter 25 mm Maximum CV Joint Angle 16° Engine Compatibility 10 – 1500 HP Sales Unit 1 piece -
