ID
823561
$ 15.23
1-2 weeks delivery time
-
+

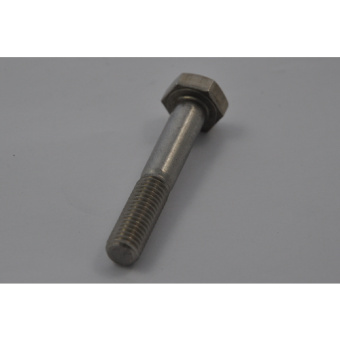

The Alamarin Jet R04100602 M10 hex head screw is a marine-grade fastening element used across Alamarin Jet-230 assemblies including the frame, steering nozzle, and reversing deflector connecting rod, and it also fits the Jet-180 steering nozzle. Designed to secure critical jet hardware against vibration and cyclic thrust loads, it helps maintain accurate nozzle positioning and dependable reverse actuation; previous part number: 23074.
- Description
- Ask a Question
-
Hex Head M10 Fastening Screw for Jet-180 and Jet-230 Assemblies
The Alamarin Jet R04100602 is an M10 hex head screw used to clamp and secure key components in Alamarin water-jet propulsion hardware. It is applied in multiple Jet-230 subassemblies—supporting rigid frame joints, steering nozzle mounting, and reversing deflector linkage connections—and it is also used on the Jet-180 steering nozzle to keep steering hardware firmly fastened in service.
Compatibility
- Alamarin Jet-180 water jets
- Alamarin Jet-230 water jets
Technical Specifications
Brand Alamarin Jet Part Number R04100602 Fastener Type Hex Head Screw Thread Size M10 Previous Part Number 23074
Product Details
- Component Type: Hex Head Screw
- Assembly Location (Jet-230): Frame (230A04 and 230A09)
- Assembly Location (Jet-230): Steering Nozzle (230F)
- Assembly Location (Jet-230): Reversing Deflector Connecting Rod
- Assembly Location (Jet-180): Steering Nozzle (180F)
Features
- Secures steering and reverse hardware to help maintain accurate jet control response
- Supports rigid frame and nozzle joints under vibration and thrust-related loading
- OEM part identification for straightforward replacement and consistent fit
- Single screw reference used across multiple Jet-180 and Jet-230 assemblies
-
