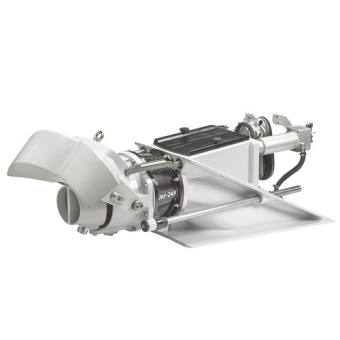

The Alamarin Jet AJ245 water-jet propulsion unit combines a mixed-flow pump with an integrated hydraulic deflector control system and pump, plus an integrated hydraulic steering cylinder for responsive vessel handling on the water. Built around the COMBI-FRAME concept for long-tail or short-tail installation methods, the AJ-245 package includes a stainless steel impeller selected for the specified engine, an integrated hydraulic oil cooler, a tube-type deflector, a DIN 120 drive flange, and practical delivery items such as a spare pump belt, user manual, plywood packing, and a raw water outlet.
- Description
- Ask a Question
-
AJ-245 Water-Jet Propulsion Unit with Hydraulic Deflector and Steering Hydraulics
The Alamarin Jet AJ245 is a complete AJ-245 water-jet drive package featuring hydraulic deflector control with pump and an integrated hydraulic steering cylinder. Designed around the COMBI-FRAME concept, it supports both long-tail and short-tail installation methods, allowing most of the jet to be positioned either inside or outside the hull while maintaining strong thrust, cavitation margin, and acceleration.
Compatibility
- Alamarin Jet AJ-245 water jets
Product Details
- Brand: Alamarin Jet
- Part Number: AJ245
- Component Type: Water-jet drive with hydraulic deflector control and pump
- Steering System: Integrated hydraulic steering cylinder
- Reverse/Deflector Control: Hydraulic
- Drive Flange: DIN 120 (additional options available, drawing 10918)
Features
- Stainless steel impeller selected for the specified engine
- Hydraulic cylinder and pump for deflector control
- Integrated oil cooler for the hydraulic system
- Tube-type deflector for controlled maneuvering
- Rear end bearing with water lubrication or grease lubrication
- Compatible with AJ ACU and AJ Intelligent Operation Control Systems
- COMBI-FRAME installation method for flexible in-hull or out-of-hull placement
Technical Specifications
Maximum Vessel Displacement 3500 kg / 7,700 lbs Maximum Input Power 235 kW / 320 HP Jet Weight 95 kg / 209 lbs Pump Type Mixed-flow Maximum Shaft Speed 4600 rpm Maximum Impeller Diameter 245 mm Jet Construction Aluminum / Stainless Steel
Included in Supply
- Stainless steel impeller (size calculated for the existing installation: boat, engine, gearbox)
- Hydraulics for deflector actuation (pump and cylinder)
- Integrated hydraulic cylinder for steering
- Integrated hydraulic oil cooler
- Drive flange DIN 120 (other flanges available as an option, drawing 10918)
- Tube-type deflector
- Rear end bearing with water lubrication or grease lubrication
- Spare belt for the hydraulic pump
- Complete user manual
- Plywood packing
- Raw water outlet, 1 piece
-
