The Lopolight 201-012-FB-B is a horizontally mounted black 360° white navigation light with a flat base POM system. It supports vessels up to 50 meters, has 2 nautical mile visibility, operates at 10-32VDC, is IP68 rated, and comes with a 0.7 meter shielded marine-grade cable and installation guide.
- Description
- Ask a Question
-

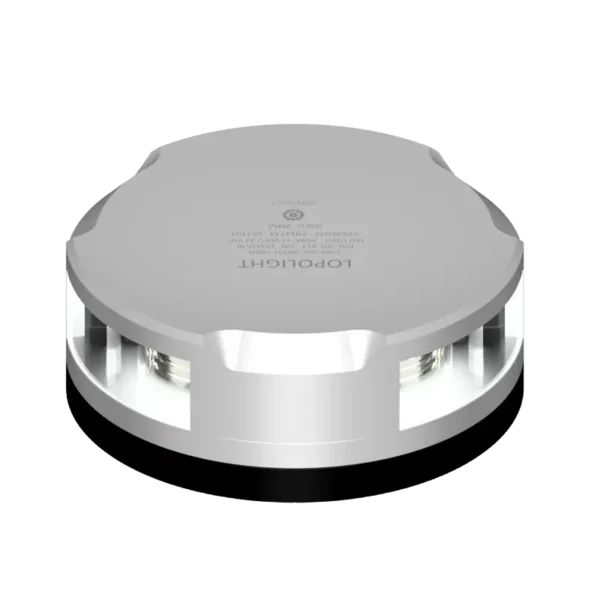

Lopolight 201-012-FB-B - Navigation Light 2NM 360° White, Black with FB Base
This navigation light is horizontally mounted using a flat base (FB) POM mounting system and includes a 0.7 meter shielded marine grade cable for convenient setup.
- Model Number: 201-012-FB-B
- Light Color: White
- Dimensions (metric): Ø92.5mm x 36mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Certification: Certified by DNV; Declaration of conformity and certificates available on www.lopolight.com under Support
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility Range: 2 nautical miles
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal with FB (flat base) system
- Materials: Black anodized aluminum (25µ), PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32 VDC
- Connection: 0.7m cable included
- Power Draw: 2.6 W
- Current Consumption: 167 mA @ 12 VDC, 110 mA @ 24 VDC
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Vessel Size Compatibility: Under 12M, 12-20M, 20-50M
- Weight: 0.42 Kg (14.66 Oz)
- IP Rating: IP68
- Included in Package: 1 navigation light with 0.75 m cable, installation guide
- EAN: 5704438042797
- UPC Code: 879343042929
- Article Number: 186712AZFB
- Packaging Unit: 1 piece
- Supplier Article Code: 201-012-FB-B
-
