Vitrifrigo R502.4410 control panel is designed for air conditioning systems, allowing precise temperature adjustment, ventilation mode selection, timer programming, and full monitoring for optimal onboard comfort.
- Description
- Ask a Question
-
Vitrifrigo 5605R0297 - Control Panel For Climatisation R502.4410

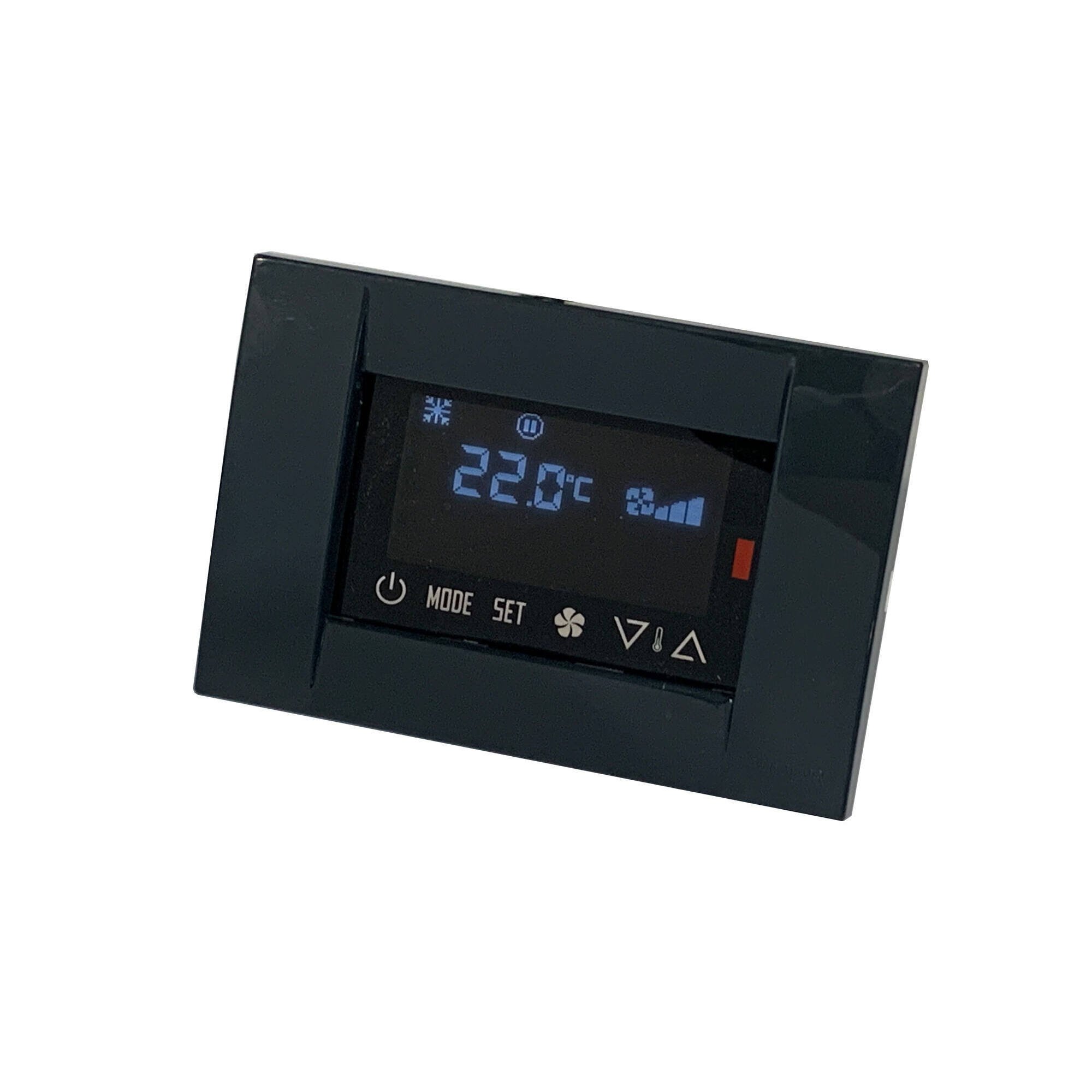

The Vitrifrigo R502.4410 control panel is designed for precise and intuitive management of air conditioning systems. Thanks to its clear interface and multiple menu keys, it allows easy commissioning, accurate temperature regulation, and full control of ventilation and operating modes for optimal onboard comfort.
Main Functions
- Six menu keys for simple commissioning and operating mode selection
- Operating modes: automatic, cooling, heating, and ventilation
- Automatic or manual ventilation mode selection
- Temperature adjustment range from 18°C to 27°C
- Temperature display selectable in °C or °F
- Manual fan speed adjustment
- Programmable start-up and shutdown timer
- Keyboard lock function to prevent unintended settings changes
- Temperature probe calibration for measurement correction
- Fan speed reversal in heating mode
Displayed Information During Operation
- Selected operating and ventilation modes
- Ambient temperature and set temperature
- Fan speed indication
- Compressor operation status
- Programmed timer and keyboard lock status
- Alarm signaling for system monitoring
Technical Details
Ambient Temperature Measurement Integrated probe in control panel External Temperature Probe Optional, connectable to cabinet electronic board Temperature Adjustment Range 18°C – 27°C Display Units °C / °F
Brand: Vitrifrigo
-
