SKU:
EX 036156
€ 1.193,28
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Linak Actuator LA36 is a powerful and efficient actuator designed for parallel applications, featuring a maximum load capacity of 680 kg, a stroke length of 500 mm, and a protection class of IP69K. With a voltage of 24 VDC and a current of 10.3 A, it operates effectively under load, making it suitable for various demanding environments.
- Description
- Ask a Question
-

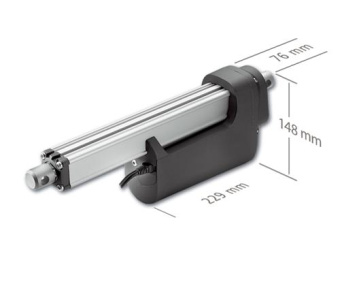

Linak Actuator LA36-6,8kN-500mm-24VDC-IC Parallel
The Linak Actuator LA36 is designed for parallel applications, providing high efficiency and strength in various settings.
- Product Number: 036156
- Sales Unit: 1 Piece
- Distance HoH (mm): 750
- Protection Class (IP): IP69K
- EAN Code: 8720193015033
- Brand: Linak
- Suitable for: Parallel application
- Maximum Load (Kg): 680
- Product Features: Speed under load 24V: 12
- Series: LA36
- Stroke Length (mm): 500
- Type of Voltage (VAC / VDC): VDC
- Current (A): 10.3
- Voltage (V): 24
- Parallel Suitable: Yes
- Locking: Yes
-
