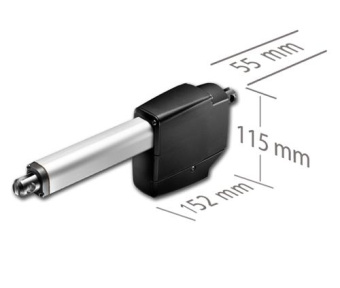

Linak Actuator LA36 24V 10.3A Locked/Synchronized 750 mm

SKU: EX 036148

€ 1.041,87

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Linak Actuator LA36 is a high-performance actuator designed for various applications, featuring a maximum load capacity of 680 kg, a stroke length of 500 mm, and a protection class of IP69K. Operating at 24V with a current of 10.3A, it is ideal for demanding environments and ensures reliable performance with its locking mechanism.

Description
Ask a Question

Linak Actuator LA36 24V 10.3A Locked/Synchronized 036148

The Linak Actuator LA36 is a powerful and reliable actuator designed for various applications. With its robust construction and advanced features, it ensures optimal performance in demanding environments.
- Product Number: 036148
- Sales Unit: 1 Piece
- Distance HoH (mm): 750
- Protection Class (IP): IP69K
- EAN Code: 8720193014982
- Brand: Linak
- Suitable for: Single application
- Maximum Load (Kg): 680
- Product Features: Speed under load 24V 12
- Series: LA36
- Stroke Length (mm): 500
- Type of Voltage (VAC / VDC): VDC
- Current (A): 10.3
- Voltage (V): 24
- Parallel Suitable: No
- Locking: Yes
