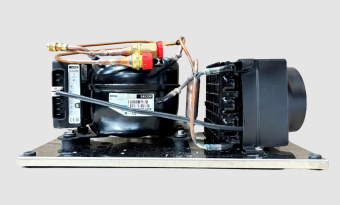

Isotherm SBC00017DA – BD80F Air-Cooled Lamellar Condensing Unit with Electronic Unit, Fan and Couplings

ID 1303174

$ 1,853.12

1-2 weeks delivery time

- +

Add to cart

The Isotherm SBC00017DA is a high-capacity air-cooled BD80F lamellar condensing unit for 12/24V DC refrigeration systems, equipped with an electronic control unit, cooling fan and factory-installed couplings. Designed for large marine refrigerators and freezers, it delivers strong performance and efficient heat dissipation for demanding onboard installations.

Description
Ask a Question

Isotherm SBC00017DA – Air-Cooled BD80F Lamellar Condensing Unit with Electronic Unit, Fan and Couplings

The Isotherm SBC00017DA is a powerful air-cooled lamellar condensing unit built around the Secop/Danfoss BD80F compressor, offering one of the highest cooling capacities available for 12/24V DC marine refrigeration systems. Suitable for large fridges, freezers or dual-mode installations, the unit includes a dedicated cooling fan to ensure efficient heat dissipation and stable operation even under high thermal loads. It is supplied with a factory-matched electronic control module and pre-installed couplings for efficient and straightforward installation.

Parameter	Specification
Compressor Model	Secop/Danfoss BD80F
Voltage	12/24V DC
Condenser Type	Lamellar, air-cooled
Cooling Fan	Included
Electronic Control Unit	Included (factory-matched)
Couplings	Pre-installed
Refrigerant	R134a
Application Range	Large refrigerators, freezers, high-demand cooling systems

High-capacity BD80F compressor for large cold-storage volumes.
Air-cooled lamellar condenser with integrated fan for enhanced efficiency.
12/24V DC operation suitable for all marine DC electrical systems.
Delivered with pre-installed couplings for simplified installation.
Electronic control unit included for stable and efficient performance.
Ideal for heavy-duty marine refrigeration or freezer applications.
Designed for continuous, reliable operation in harsh environments.
