The Isotherm B029WNAAP17111A1 Dual 29(II) is a compact built-in fridge or freezer module with a custom volume of approx. 0.92 / 0.91 cu ft, designed for 12/24V DC systems. It features a new, easy-to-use integrated control panel, flexible installation options with a compressor that can be relocated up to 3 ft as standard, and a cabinet-sized design measuring 12.8 × 13.4 × 25.7 inches and weighing approx. 26 / 25 lbs (custom version).

Description
Ask a Question

Isotherm B029WNAAP17111A1 – Built-In Dual Fridge/Freezer 29(II), 12/24V, Custom Volume, Remote Compressor

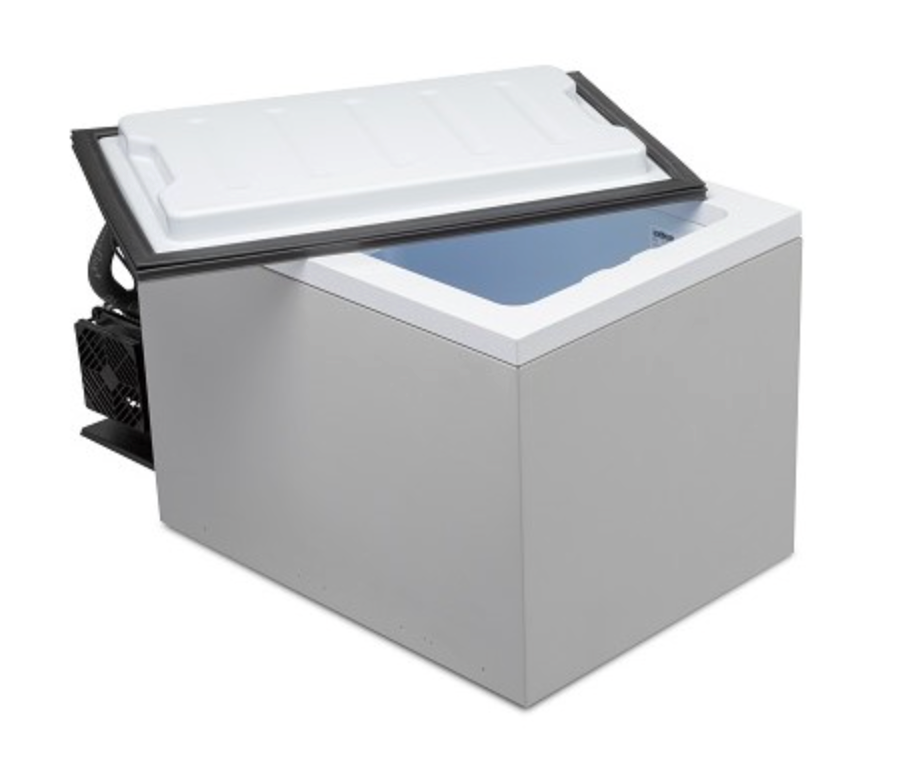

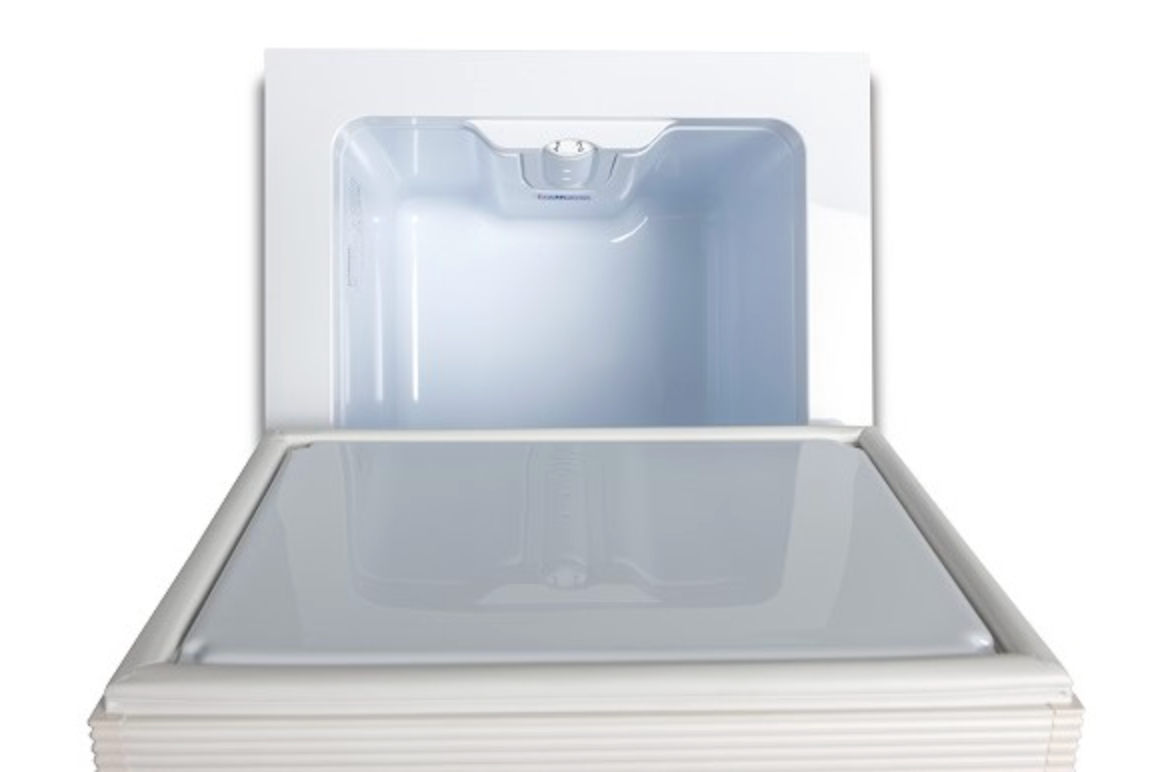

The Isotherm BI 29 Dual Version II (model B029WNAAP17111A1) is a versatile built-in refrigeration drawer that can be configured either as a fridge or as a freezer, depending on onboard requirements. This custom version offers a special internal volume of approximately 0.92 / 0.91 cubic feet and is engineered for 12/24V DC marine systems. The unit is designed for flexible integration in furniture modules and galleys, featuring a new, user-friendly control panel that is neatly integrated into the cabinet interior. The compressor can be relocated up to 3 ft from the drawer as standard, increasing installation freedom and helping to optimize space, noise and ventilation management.

Parameter	Specification
Model	BI 29 Dual Version II
Function	Fridge or Freezer (dual-mode)
Volume (Custom Version)	Approx. 0.92 / 0.91 cu ft
Voltage	12/24V DC
Weight (Custom Version)	26 / 25 lbs
Dimensions (H × W × D)	12.8 × 13.4 × 25.7 in
Compressor Position	Relocatable up to 3 ft (standard)
Control Panel	New, easy-to-use, integrated into cabinet interior
Installation Options	Multiple configurations, custom door panel possible
Performance	High cooling capacity for marine use

Dual-mode operation: can be used either as a refrigerator or as a freezer.
Custom internal volume of approx. 0.92 / 0.91 cu ft for tailored installations.
12/24V DC compatibility for standard marine electrical systems.
Compressor can be moved up to 3 ft for optimal space, noise and ventilation management.

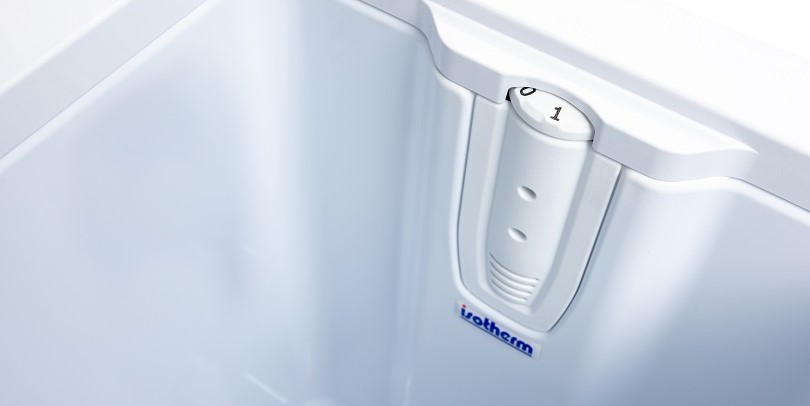

New integrated control panel, easy to operate and visually clean inside the cabinet.
High cooling performance suitable for demanding onboard conditions.
Multiple installation options with the possibility of a custom door front.
Compact dimensions (12.8 × 13.4 × 25.7 in) ideal for tight galley or furniture modules.
