ID
1302907
$ 5,144.58
1-2 weeks delivery time
-
+
The Isotherm 3160BB1CRK015 DR160 Custom Light is a 12/24V double drawer refrigerator/freezer designed for integration with custom front panels, offering a total capacity of 160 liters. The upper drawer functions as a refrigerator and the lower as a freezer, both powered by a Secop BD80F compressor for quiet, efficient cooling. With low energy consumption, LED lighting, and a marine-grade build, it combines performance and design flexibility for high-end yacht and motorhome interiors.
- Description
- Ask a Question
-

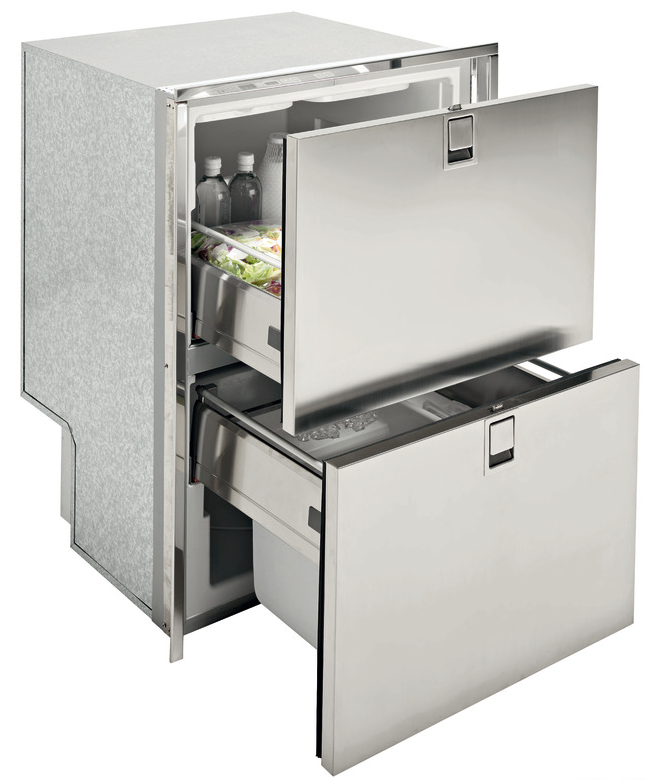

Isotherm 3160BB1CRK015 – DR160 Custom Light 12/24V Double Drawer Refrigerator/Freezer (160L, Custom Front)
The Isotherm DR160 Custom Light (model 3160BB1CRK015) is a premium double drawer refrigerator/freezer system designed for marine and RV applications with custom furniture integration. It operates on 12/24V DC and provides a total of 160 liters of capacity divided into two drawers: the upper as a refrigerator and the lower as a freezer. Built with a robust structure and front prepared for custom paneling, this model allows full aesthetic alignment with onboard cabinetry. Equipped with an efficient Secop BD80F compressor, mechanical thermostat, and LED interior lighting, it ensures quiet, reliable, and energy-efficient operation.
Key Features
- Custom-front ready design for seamless furniture integration
- Total capacity of 160 liters (fridge + freezer)
- 12/24V DC operation suitable for marine and mobile power systems
- Upper drawer refrigerator / lower drawer freezer configuration
- Efficient Secop BD80F compressor for optimal cooling performance
- Low energy consumption and quiet operation
- Internal LED lighting and mechanical thermostat with potentiometer control
- Optional divider kit and AC/DC power pack available
Technical Specifications
Parameter Value Part Number 3160BB1CRK015 Model DR160 Custom Light (Fridge/Freezer) Total Capacity 160 L Configuration Top drawer refrigerator / bottom drawer freezer Voltage 12 / 24 V DC Compressor Secop BD80F Power Consumption Approx. 1600 Wh / 24 h (at +25°C ambient, +5°C fridge) Dimensions (H × W × D) 865 × 627 × 610 mm Weight 46 kg Front Type Custom panel-ready Lighting Internal LED Thermostat Mechanical with potentiometer control
Applications
- Luxury yachts and sailing boats
- Motorhomes and custom RV interiors
- Custom marine and residential galley installations
Documents
Isotherm DR160 Drawer Fridge Freezer Spare Parts List Size: 521,2 KbIsotherm DR160 Drawer Manual Size: 22,6 Mb -
