Isotherm SED00036DA – Intelligent Temperature Control (ITC) Digital Display Kit for 101N212/101N510

Isotherm SED00036DA – Intelligent Temperature Control (ITC) Digital Display Kit for 101N212 / 101N510

The Isotherm SED00036DA Intelligent Temperature Control (ITC) Kit is an advanced digital interface designed for marine refrigerators equipped with Secop electronic boards 101N212 (BD35/50F) and 101N510. The system enables precise external temperature regulation, status monitoring, and optimized compressor performance, significantly reducing onboard power consumption. Using a dedicated air sensor inside the cabinet, the ITC module continuously analyzes cooling demand and adjusts compressor RPM through proprietary microprocessor algorithms to maximize efficiency and power savings.

The unit supports overcooling modes to store cold energy in food and beverages during periods of surplus charging (shore power, alternator, AC/DC kit), reducing battery load later. Three selectable battery-protection levels, Eco mode, Boost mode, and soft-start function further enhance system control and longevity. The digital panel may be wall- or flush-mounted and serves as a complete retrofit solution for upgrading legacy Isotherm refrigerators to smart, energy-optimized operation.

Technical Specifications

Main Features

• External digital display for temperature monitoring and adjustment.
• Reduces onboard power consumption through optimized compressor control.
• Continuously scans cabinet air temperature via internal air sensor.
• Cold-energy storage automatically charges when surplus power is available.
• Three selectable battery-protection levels for DC safety.
• Eco mode minimizes power draw for extended battery autonomy.
• Boost mode accelerates cooling for fast temperature drop.
• Soft-start function prevents compressor starting surges.
• Maintains minimal RPM for ~30 seconds to balance refrigerant pressure.
• Compatible upgrade for Isotherm refrigerators using Danfoss/Secop compressors.
• No eutectic plates required.

Operation Modes

• ITC Mode: Fully automatic compressor speed optimization.
• Eco Mode: Reduced power mode (fixed 2500 RPM) prioritizing battery preservation.
• Overcooling Mode: Stores extra cooling when engine/shore power is available.
• Boost Mode: Rapid cooling performance.

Energy Optimization

• Up to 25% energy savings from compressor-efficiency improvements alone.
• Up to 40% savings when cold-energy storage is utilized.
• Smart logic determines optimal compressor speed for maximum COP.
• Cold energy stored in food/beverages is reused when running on battery power.

Compatibility Notes

• The system must be configured via mechanical switches according to cabinet size and mode (fridge/freezer).
• Compatible only with control boards:
  • IWM SEG00002DA – Secop 101N212
  • IWM SEG00030GA – Secop 101N510
• Verify your refrigerator’s control unit before installation.

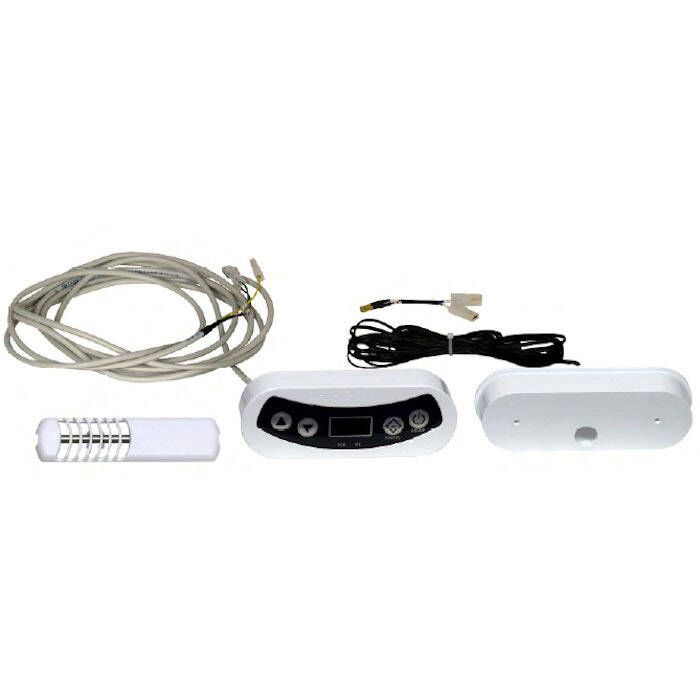

In the Box

• Instructions manual
• Digital display
• Display support frame
• Flush-mount container
• Wall-mount container
• Temperature sensor with cable
• Sensor support and grille
• Display connection cable
• AC/DC filter and extension cable
• (2) M2.5 screws
• (2) Self-tapping screws
• Rubber cable grommet
