ID
1303014
$ 3,925.67
1-2 weeks delivery time
-
+
The Isotherm DR70F Custom Panel (D070DNLCP55112AA) is a 230V, 70-liter marine drawer freezer equipped with an integrated ice maker and designed for installations with a customer-supplied front panel. It features a fingerprint-resistant Clean Touch stainless-steel construction, a robust drawer mechanism, internal baskets, five blue LED lights, and a 2-side mounting frame for seamless integration. Ideal for yachts and premium vessels requiring both freezer capacity and on-board ice production.
- Description
- Ask a Question
-

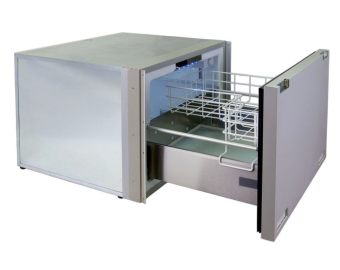

Isotherm D070DNLCP55112AA – 230V DR70F Custom Panel Drawer Freezer with Integrated Ice Maker, 70L
The Isotherm DR70F Custom Panel with Ice Maker is a premium 70-liter marine drawer freezer engineered for custom installations using your own panel front. Operating on 230V AC, it includes an integrated ice maker for maximum onboard convenience, making it an excellent solution for galleys, flybridges and luxury yacht interiors.
The Clean Touch stainless-steel finish is specially treated to resist fingerprints, ensuring a consistently elegant appearance with minimal maintenance. A robust drawer mechanism, five blue LED interior lights, and practical internal baskets deliver outstanding usability and durability in marine environments.
This model is supplied with a two-sided mounting frame for recessed installations. The compressor can be remotely positioned up to 1.1 meters from the cabinet, providing flexibility in tight installation areas.
Main Features
- Premium 70-liter drawer freezer with integrated ice maker
- Custom panel-ready front for full design integration
- 230V AC power version
- Clean Touch stainless-steel finish (fingerprint resistant)
- Five internal blue LED lights for clear visibility
- Robust marine-grade drawer mechanism
- Internal storage baskets included
- Two-sided stainless-steel mounting frame
- Remote compressor installation possible up to 1.1 m
Technical Specifications
Parameter Value Model DR70F Custom Panel with Ice Maker Part Number D070DNLCP55112AA Capacity 70 liters (2.8 cu ft) Voltage 230V AC Door Front Custom panel (customer supplied) Ice Maker Integrated AC-operated Interior Lighting 5 blue LED lights Compressor Remote compressor (up to 1.1 m installation distance) Dimensions (inches) 17.4 (H) × 24 (W) × 22 (D) Dimensions (mm) Approx. 627 × 444 × 724 mm Weight Approx. 85 lbs Mounting Frame 2-side stainless-steel frame included -
