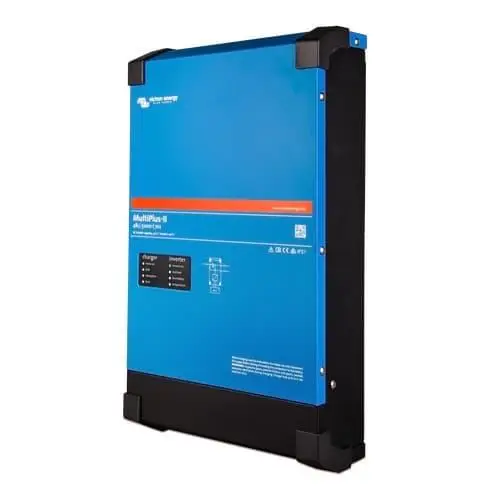

Victron MultiPlus-II 48/5000/70-50 230V Inverter/Charger - PMP482505010

SKU: BB PMP482505010

€ 1.387,07

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron MultiPlus-II 48/5000/70-50 is a powerful 48 V inverter/charger delivering 4000 W continuous power (5000 VA), 70 A battery charging, and a 50 A AC transfer switch. Ideal for hybrid solar, marine, and off-grid systems, it includes PowerAssist, full ESS functionality, and remote system monitoring through VE.Bus. With high efficiency, parallel capability, and anti-islanding features, it ensures reliable and flexible energy control in any environment.

Description
Ask a Question

Victron Energy MultiPlus-II 48/5000/70-50 (PMP482505010) is a high-capacity inverter/charger designed for professional off-grid, hybrid, and backup power systems. It combines a pure sine wave inverter with an intelligent battery charger and a fast 50 A AC transfer switch. Fully compatible with solar energy systems and advanced energy storage strategies (ESS), this unit provides exceptional flexibility, reliability, and performance.

Main Features:

Pure sine wave output – 230V AC for sensitive electronics and household appliances.
PowerControl & PowerAssist – prevents overload by limiting input current and boosting peak power from battery when needed.
ESS (Energy Storage System) ready – integrates with solar charge controllers and grid-tie inverters to support self-consumption.
Dual AC outputs – critical loads remain powered during outages; secondary loads only powered when AC input is active.
VE.Bus connectivity – for system integration, remote configuration, and parallel/three-phase operation.
Remote monitoring and configuration – via Cerbo GX, VRM Portal, VictronConnect, or Bluetooth (VE.Bus Smart Dongle required).

Technical Specifications:

Model	MultiPlus-II 48/5000/70-50
SKU	PMP482505010
Battery Voltage	48 V
Continuous Output Power (25°C)	4000 W
Apparent Power (VA)	5000 VA
Peak Power	9000 W
Transfer Switch	50 A
Max Battery Charging Current	70 A
DC Input Voltage Range	38 – 66 V
AC Input Voltage Range	187 – 265 VAC
AC Frequency	45 – 65 Hz
Efficiency	Up to 96%
Zero Load Power	15–18 W (Search mode: 2 W)
Enclosure Material / Colour	Steel / Blue (RAL 5012)
Protection Rating	IP22
Battery Connection	4x M8 bolts (2+ / 2–)
AC Connection	Screw terminals, 13 mm² (6 AWG)
Dimensions (H x W x D)	565 x 320 x 149 mm
Weight	30 kg

Additional Highlights:

Supports external current sensors (50 A / 100 A) for dynamic PowerControl
Programmable relay (AC: 230V/4A; DC: 4A @ 35VDC) for alarms or generator control
Compatible with lithium-ion, AGM, GEL, and lead-acid battery types
Temperature-compensated charging (sensor included)
Fan-assisted cooling, operating range: -40°C to +65°C
Suitable for parallel and 3-phase operation (up to 6 units in parallel)

The MultiPlus-II 48/5000 is the perfect solution for high-demand energy systems that require smart energy control, seamless power conversion, and grid-compliant backup performance.

Manufacturer: Victron Energy, The Netherlands

Looking for a different Victron Energy MultiPlus-II Inverter/Charger? Explore our full Victron Multiplus II product range.
