Victron Energy PMP122505010 - MultiPlus-II 12/5000/220-50 230V Inverter/Charger

SKU: CN VIPMP122505010

€ 2.450,45

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron MultiPlus-II 12/5000/220-50 is a powerful 12 V inverter/charger with a continuous output of 4000 W (5000 VA), a 220 A adaptive battery charger, and a 50 A transfer switch. Featuring PowerAssist, VE.Bus connectivity, and ESS compatibility, it is ideal for large-scale off-grid, marine, vehicle, and hybrid solar systems. Built-in anti-islanding and remote monitoring capabilities make this unit a robust and scalable energy solution.

Description
Ask a Question

Victron Energy MultiPlus-II 12/5000/220-50 (PMP122505010) is a high-performance inverter/charger built for demanding energy storage, backup, and mobile power applications. It combines grid-interactive and off-grid functionality in a single, compact unit — ideal for hybrid solar systems, yachts, RVs, and remote installations.

Main Features:

Pure sine wave inverter – 230V AC output, safe for all sensitive electronics.
PowerAssist and PowerControl – automatically manage and supplement generator or shore power when demand spikes.
ESS-ready – compatible with grid-tied self-consumption and dynamic energy switching between grid, battery, and solar.

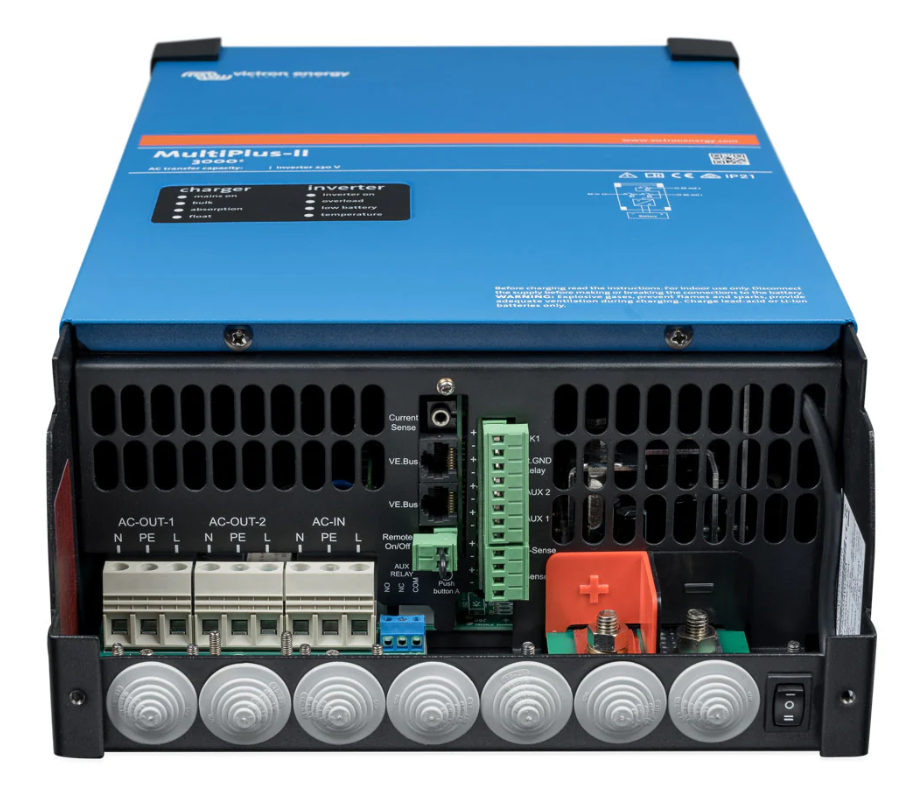

Dual AC outputs – one with UPS functionality; second for loads active only when AC input is present.
Parallel and 3-phase operation – up to 6 units can be connected in parallel; 3 for 3-phase.
VE.Bus communication – enables integration with GX devices, VictronConnect, and VRM portal for full system control.

Technical Specifications:

Model	MultiPlus-II 12/5000/220-50
SKU	PMP122505010
Battery Voltage	12 V
Continuous Output Power (25°C)	4000 W
Apparent Power (VA)	5000 VA
Peak Power	9000 W
Transfer Switch	50 A
Max Battery Charging Current	220 A
Input Voltage Range (DC)	9.5 – 17 V
AC Input Voltage Range	187 – 265 VAC
AC Frequency	45 – 65 Hz
Efficiency	Up to 96%
Zero Load Power	15–18 W (Search mode: 3 W)
Enclosure Material / Colour	Steel / Blue (RAL 5012)
Protection Rating	IP22
Battery Connection	4 x M8 bolts
AC Connection	Screw terminals, 13 mm² (6 AWG)
Dimensions (H x W x D)	702 x 345 x 152 mm
Weight	33 kg

Additional Highlights:

Supports external current sensors (50 A or 100 A) for advanced PowerControl.
Programmable relay for alarms, generator start/stop, or automation.
Remote monitoring via Cerbo GX, VRM portal, VictronConnect app, or VE.Bus Smart Dongle (Bluetooth).
Compatible with lithium, AGM, GEL, and lead-acid battery chemistries.
Fan-assisted cooling; operating temperature: -40°C to +65°C

The MultiPlus-II 12/5000 is the ideal solution for large and scalable energy systems where seamless power conversion, grid interaction, and remote control are essential.

Manufacturer: Victron Energy, The Netherlands
