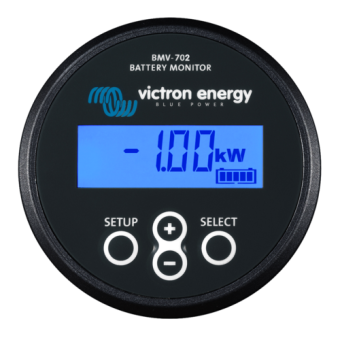

The Victron BMV-702 BLACK (BAM010702200R) is a precision battery monitor designed for 6.5–95V DC systems. It features a black finish, 500A/50mV shunt, and an auxiliary input for tracking battery temperature, midpoint voltage, or a second battery’s voltage. Equipped with VE.Direct communication, it is ideal for advanced battery management in off-grid, marine, and backup systems.
- Description
- Ask a Question
-
Victron Energy BMV-702 BLACK Battery Monitor (BAM010702200R) is part of the advanced BMV-700 series and comes in a sleek black finish. It monitors battery voltage, current, state of charge, power usage, time-to-go, and amp-hours consumed using a high-precision 500A/50mV shunt. An auxiliary input allows additional monitoring of battery temperature, midpoint voltage, or a second battery bank, making it ideal for complex energy systems.
Technical Specifications:
Model BAM010702200R (BMV-702 BLACK) Supply Voltage Range 6.5 – 95 VDC Battery Capacity Range 1 – 9999 Ah Auxiliary Input Yes – for second battery voltage, temperature, or midpoint Temperature Measurement Range -20 to +50°C Shunt 500A / 50mV (included) Relay Output 60V / 1A Normally Open (configurable) Communication Interface VE.Direct Current Draw (Backlight Off) < 4 mA Display Protection IP55 (indoor use)
Measurement Accuracy & Resolution (with 500A shunt):
- Voltage: ±0.01 V (±0.3%)
- Current: ±0.01 A (±0.4%)
- Amp-hours: ±0.1 Ah
- State of charge: ±0.1%
- Time to go: ±1 minute
- Temperature: ±1°C/°F
Key Features:
- Black-finish variant of the high-precision BMV-702 model.
- Monitors voltage, current, power, amp-hours, state of charge, and time remaining.
- Aux input enables additional data for second battery, temperature, or midpoint voltage.
- VE.Direct port for real-time communication with GX devices or Bluetooth dongle.
- Programmable relay for alarms or automation (e.g., generator start).
- Historical data logging to assess battery performance and health.
Included Components:
- BMV-702 BLACK display unit
- 500A/50mV precision shunt with quick-connect PCB
- 10m RJ12 cable
- 2m battery cable with 1A fuse
- Square and round bezels, mounting ring, screws
Typical Applications:
- Advanced off-grid battery systems
- Marine, RV, and expedition vehicles
- Industrial backup systems requiring temperature or midpoint monitoring
Optional accessories include the VE.Direct to Bluetooth Smart dongle for mobile monitoring and the Battery Balancer (BMS012201000) for series-connected battery banks.
Documents
Victron Energy Battery Monitor BMV-700 Size: 521,6 Kb -
