The Victron BMV-700H (BAM010700100) is a high-voltage battery monitor for DC systems ranging from 60V to 385V. Designed for large-scale or industrial energy storage, it features a 500A/50mV shunt in a protected enclosure and tracks amp-hours, power, current, voltage, state of charge, and time remaining. Includes VE.Direct interface and supports flush mounting.
- Description
- Ask a Question
-

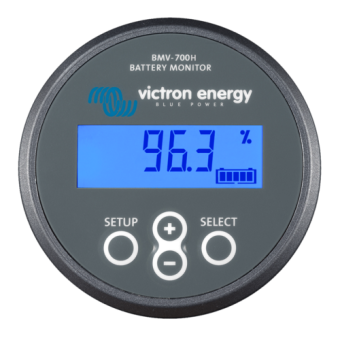

Victron Energy BMV-700H High Voltage Battery Monitor (BAM010700100) is a precision battery monitoring solution engineered for high-voltage DC systems between 60V and 385V. Ideal for large battery banks in telecom, off-grid, and industrial applications, it provides real-time insight into amp-hours consumed, state of charge, voltage, current, and power usage. A robust 500A/50mV shunt in a special enclosure ensures safe and accurate measurements at elevated voltages.
Technical Specifications:
Model BAM010700100 (BMV-700H) Supported Voltage Range 60 – 385 VDC Battery Capacity Range 1 – 9999 Ah Current Draw (Backlight Off) < 4 mA Shunt Rating 500A / 50mV (included, housed in protective enclosure) Relay Output 60V / 1A, Normally Open (configurable) Auxiliary Input Not available Communication VE.Direct Installation Type Flush mount (63 mm front, 52 mm body diameter) Display Protection IP55 (for indoor use)
Measurement Accuracy & Resolution:
- Voltage: ±0.01V (±0.3%)
- Current: ±0.01A (±0.4%)
- Amp-hours: ±0.1 Ah
- State of charge: ±0.1%
- Time to go: ±1 minute
Key Features:
- Designed for high-voltage DC battery systems up to 385V.
- Calculates amp-hours consumed, state of charge, and remaining run time.
- Includes 500A/50mV shunt in a special high-voltage enclosure.
- VE.Direct port enables real-time monitoring via GX devices or VictronConnect (Bluetooth dongle optional).
- Configurable relay output for automation or alarm functions.
- Stores historical usage and system performance data.
Included Components:
- BMV-700H display unit
- 500A/50mV shunt in special protective housing
- 10m RJ12 UTP cable
- 2m battery power cable with 1A inline fuse
- Round and square bezels, mounting ring, installation screws
Typical Applications:
- High-voltage battery banks (60–385V) in industrial or telecom systems
- Off-grid energy storage with elevated voltage architecture
- Professional or mission-critical DC systems requiring accurate monitoring
Note: The BMV-700H is designed for systems with a grounded negative. Not suitable for isolated or floating negative systems. For Bluetooth functionality, use the optional VE.Direct to Bluetooth Smart dongle.
-
