The Victron BMV-700 (BAM010700000R) is a high-precision battery monitor for 6.5–95V DC systems. It measures battery voltage, current, state of charge, power consumption, time-to-go, and amp-hours consumed using a 500A/50mV shunt. With a VE.Direct port, programmable relay, and user-friendly installation, it's ideal for precise battery health tracking in off-grid and marine systems.
- Description
- Ask a Question
-

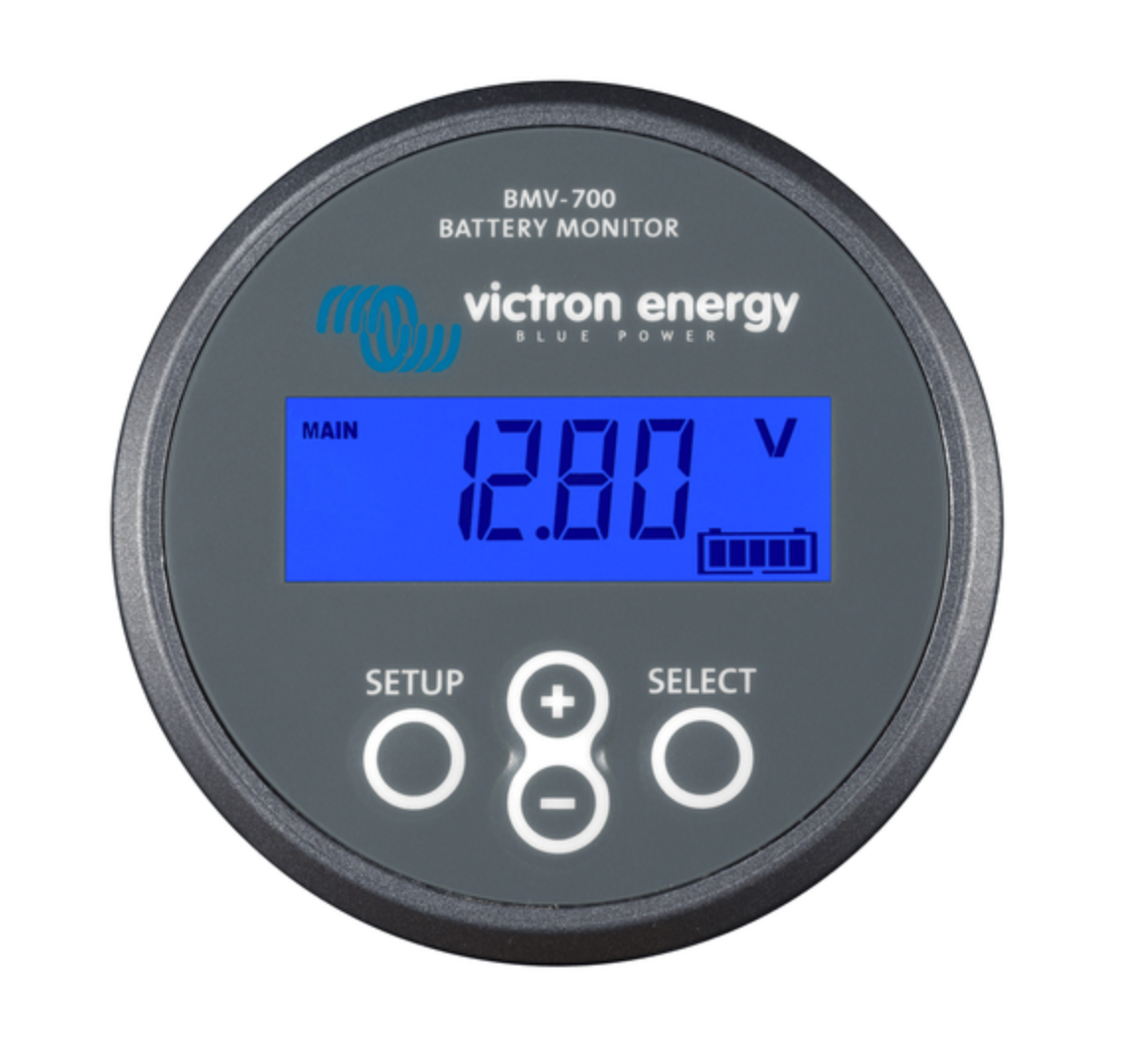

Victron Energy BMV-700 Battery Monitor (BAM010700000R) is a precision battery monitoring system designed to accurately track the state of charge and usage history of your battery bank. Ideal for off-grid, RV, marine, and backup power systems, the BMV-700 uses a high-resolution 500A/50mV shunt to measure the current flowing in and out of the battery and integrates these values to calculate amp-hours consumed and remaining time-to-go.
Technical Specifications:
Model BAM010700000R (BMV-700) Supply Voltage Range 6.5 – 95 VDC Battery Capacity Range 1 – 9999 Ah Current Draw (Backlight Off) < 4 mA Measurement Shunt 500A / 50mV (included) Relay Output 60V / 1A, Normally Open Communication Interface VE.Direct Installation Flush mount (Ø 63 mm front, 52 mm body) Display Protection IP55 (indoor use)
Measurement Accuracy & Resolution (with 500A shunt):
- Voltage: ±0.01 V (±0.3%)
- Current: ±0.01 A (±0.4%)
- Amp-hours: ±0.1 Ah
- State of charge: ±0.1%
- Time to go: ±1 minute
Key Features:
- Displays voltage, current, power, amp-hours consumed, and state of charge.
- Estimates remaining run time at current discharge rate.
- Built-in relay can disconnect non-critical loads or activate a generator.
- VE.Direct port for real-time monitoring via GX devices or VictronConnect app.
- Stores historical data for battery performance analysis.
- Compatible with optional Bluetooth dongle (sold separately) for smartphone control.
Included Components:
- BMV-700 battery monitor display unit
- 500A/50mV precision shunt with quick connect PCB
- 10m RJ12 UTP cable
- 2m battery positive cable with 1A inline fuse
- Square and round bezels, rear securing ring, and mounting screws
Typical Applications:
- Off-grid solar and wind systems
- Marine and RV battery banks
- Industrial battery monitoring setups
- Backup power systems requiring detailed battery status
For advanced monitoring features like temperature input or midpoint voltage, consider the BMV-702. To balance series-connected batteries, Victron recommends the optional Battery Balancer (BMS012201000).
