ID
1342145
$ 74.42
1-2 weeks delivery time
-
+

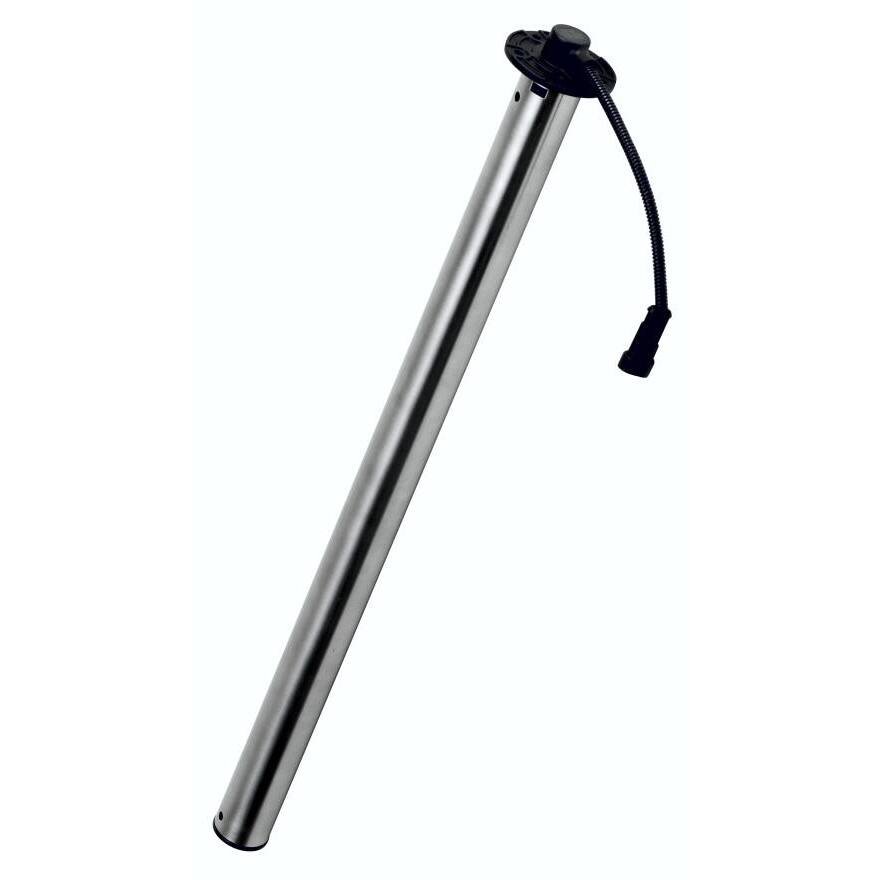

The VDO A2C1750100001 tubular fuel level sender is a 210 mm in-tank sensor designed to deliver stable 90–4 Ohm level readings by using a protected internal float inside a 38 mm tube and deflector holes that reduce the influence of fuel slosh. Built in 316 stainless steel with a 54 mm installation diameter and SAE 5-hole mounting, it supports 6–24 V systems and connects via a bipolar IP67 Supersal connector for dependable fuel level indication.
- Description
- Ask a Question
-
316 Stainless Steel Tubular Fuel Tank Level Sender 210 mm
The VDO A2C1750100001 is a tubular fuel level sender for fuel tanks, engineered to provide consistent readings even when fuel moves inside the tank. A protected internal float runs inside a 38 mm tube, while deflector holes help minimize slosh effects. This design supports stable level indication with a 90–4 Ohm output.
Compatibility
- Fuel tanks with SAE 5-hole mounting (54 mm pattern)
- Installations requiring 54 mm mounting diameter
- Systems with 6–24 V supply voltage
- Gauges or monitoring systems using a 90–4 Ohm fuel level signal
Technical Specifications
Part Number A2C1750100001 Sender Type Tubular fuel level sender Signal Output 90–4 Ohm Installation Diameter 54 mm Depth 210 mm Internal Tube Diameter 38 mm Supply Voltage 6–24 V Connector Bipolar IP67 Supersal connector Mounting SAE 5-hole mounting, 54 mm Cable Length 20 cm Material 316 stainless steel Barcode 7640178726345
Product Details
- Brand: VDO
- Application: Fuel tank level measurement
- Design Notes: Protected float inside tubular housing, slosh-reducing deflector holes, compensation chamber
Features
- Helps stabilize fuel level readings in dynamic conditions through slosh control design
- Protected internal float supports reliable operation in the tank environment
- 90–4 Ohm output integrates with compatible gauges and monitoring systems
- SAE 5-hole mounting and 54 mm installation diameter simplify replacement in matching tank flanges
- IP67 connector supports robust electrical connection in marine and automotive environments
-
