ID
1369886
$ 172.92
1-2 weeks delivery time
-
+
The VDO ViewLine VL Flex 52 multifunction instrument (B00043501) is a compact, programmable 52 mm gauge designed for marine and industrial monitoring, with a crisp 1.44 inch black display and bright white LED backlighting for fast readability. Built for Veratron engine monitoring systems, it supports multiple analog input types (0-5 V, 0-1000 Ohm, frequency) and uses NFC wireless programming to simplify configuration, while its anti-fog lens and IP67-rated front protection help it stay clear and dependable in harsh onboard environments.
- Description
- Ask a Question
-

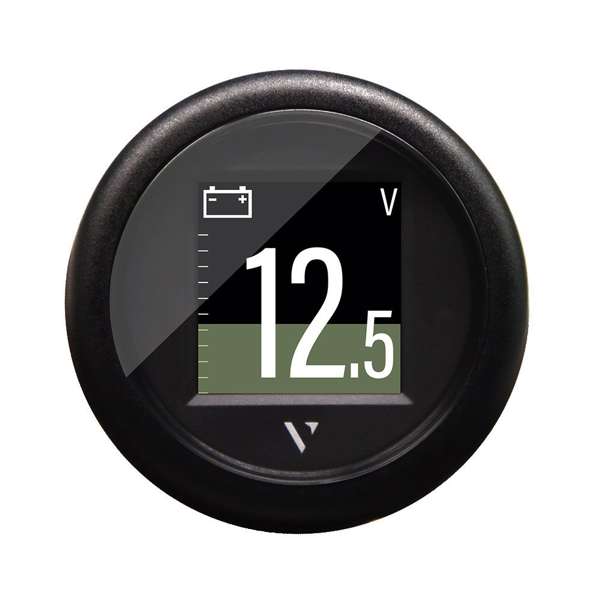

VDO ViewLine VL Flex 52 Programmable Multifunction Instrument
The VDO B00043501 ViewLine VL Flex 52 is a compact 52 mm multifunction instrument developed for flexible monitoring in marine and industrial installations. Designed for Veratron engine monitoring systems, it combines a clear 1.44 inch black display with white LED backlighting and supports multiple analog input signal types. NFC wireless programming makes setup and reconfiguration fast, while the anti-fog lens and sealed front help the instrument remain readable and protected in demanding environments.
Compatibility
- Veratron engine monitoring systems
- Marine applications requiring a customizable multifunction instrument
- Industrial applications requiring a customizable multifunction instrument
- Analog input systems using 0-5 V signals
- Analog input systems using 0-1000 Ohm signals
- Analog input systems using frequency signals
Technical Specifications
Part Number B00043501 Instrument Type Multifunction programmable instrument Installation Diameter 52 mm (2 1/16 inch) Display 1.44 inch black display Backlighting White LED (not dimmable) Input Signals Supported 0-5 V; 0-1000 Ohm; frequency Operating Voltage 12-24 V DC Programming NFC wireless programmable Connector Tyco 8-Pin MQS Front Protection Rating IP67 (IEC 60529) Rear Protection Rating IP52 (IEC 60529) Lens Plastic double anti-fog Bezel Black round, interchangeable clip-on Mounting Central Spinlock nut (52 mm) EAN Code 7640178729612 Weight 0.40 kg
Product Details
- Brand: VDO
- Series: Veratron ViewLine Retail
- Category: Multifunction instruments
- Front Color: Black front plate
- Communication: Analog
- Warning Light: Without
Features
- Programmable multifunction display for customizable monitoring pages and layouts
- NFC wireless programming to simplify configuration during installation and refits
- Bright white LED backlight for quick readability in daylight and low-light conditions
- Anti-fog lens design helps maintain a clear view in humid marine environments
- IP67 front protection supports dependable operation on exposed dashboards and consoles
- Interchangeable clip-on bezel enables easy visual customization across panels
-
