ID
1369928
$ 64.05
1-2 weeks delivery time
-
+

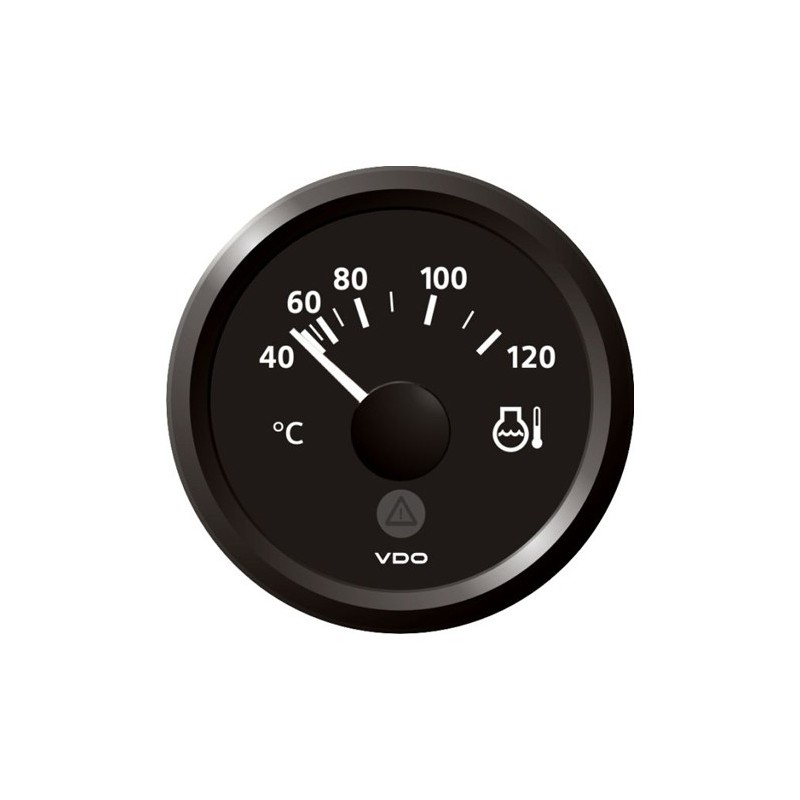

The VDO A2C60000950 ViewLine coolant temperature gauge is a 52 mm black dashboard instrument for engine monitoring, providing clear coolant-temperature indication from +40°C to +120°C on 12/24 V DC systems. Built for dependable day-to-day use, it supports an analog input using the Veratron NTC thermistor signal (287.4–22.7 Ohm), features dual anti-glare and anti-fog lens construction, and integrates a red warning LED to help you react quickly to rising temperature.
- Description
- Ask a Question
-
ViewLine 52 mm Coolant Temperature Instrument in Black (12/24 V)
The VDO A2C60000950 from the Veratron ViewLine range is a compact coolant temperature gauge designed for dashboard engine monitoring. With a clear scale from +40°C to +120°C, it helps you keep close watch on coolant temperature during operation. The black dial styling, dual anti-glare and anti-fog lens design, and integrated red warning LED make it a strong upgrade choice for modern instrument panels.
Compatibility
- Cars (12 V DC electrical systems)
- Trucks (24 V DC electrical systems)
- 12/24 V DC vehicle dashboard installations for engine monitoring
- ViewLine Marine instrument panels (12/24 V DC)
Product Details
- Brand: VDO
- Series: Veratron ViewLine
- Component Type: Coolant temperature gauge
- Gauge Diameter: 52 mm
- Color: Black
- Package Contents: Coolant temperature gauge, spinlock nut, rubber seal, QR code, safety instructions and installation manual
- Note: Coolant temperature sender not included
Technical Specifications
Part Number A2C60000950 Function Coolant temperature Coolant Temperature Range +40°C to +120°C Operating Voltage 12/24 Volt DC Current Consumption < 140 mA including warning LED Sensor Signal Input Veratron NTC thermistor 287.4–22.7 Ohm Accuracy < 3.6 angular degrees Connection Hirschmann 8-pin MQS connector Installation Hole Diameter 52 mm (2 1/16 Inch) Outside Diameter 59 mm (2 1/3 Inch) Installation Depth 50 mm Deflection Angle 90° Dial Illumination Amber LED backlight 605 nm Pointer Illumination White LED backlight Warning LED Red (632 nm) Reverse Polarity Protection Yes (5 minutes) Short Circuit Protection Yes (1 minute) Lens Dual, anti-glare, anti-fog Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Certifications CE, DNV GL EAN 7640178727878 Weight 0.32 kg HS Code 90262000
Features
- Provides precise coolant temperature indication to support safe engine operation
- 12/24 V DC compatibility for flexible use across passenger and commercial platforms
- Red warning LED adds fast visual alerting during temperature events
- Dual anti-glare and anti-fog lens supports readability in demanding conditions
- Rugged protection ratings help the instrument withstand harsh environments (IP67 front, IP52 rear)
-
