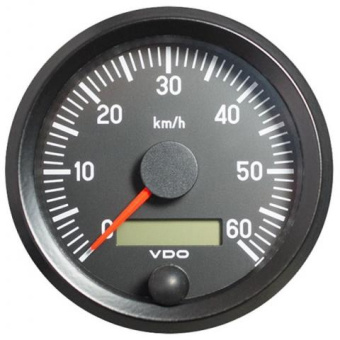

VDO 437-035-001C - Cockpit International Speedometer 60 Km/h 80mm

VDO 437-035-001C - Cockpit International Speedometer 60 Km/h 80mm

The VDO 437-035-001C is a high-performance analog speedometer designed for a wide range of automotive, marine, and industrial applications. With a sleek, black design and a 270° deflection angle, this speedometer offers clear, accurate readings of speeds ranging from 0 to 60 km/h. Its versatile operating voltage (12-24V) and robust construction make it suitable for use in diverse environments, while the high-quality materials ensure long-lasting durability.

Key Features:

• Speed Range: 0 to 60 km/h (0 to 37 mph)
• Operating Voltage: 11-30V DC (supports both 12V and 24V systems)
• Analog Display: 270° deflection angle for easy-to-read speed measurements
• Includes trip counter and odometer functionality for better tracking of distance and journey
• Backlit Dial and Pointer for optimal visibility in low-light conditions
• Compact Size: 80mm (3 1/8") installation hole diameter
• IP64 Front Protection: ozone proof, UV proof, and IP42 rear protection
• Durable construction with flame-retardant plastic housing
• CE Certified for compliance with international standards
• Reliable performance with reverse polarity protection and short circuit protection (if specified by VDO)

Specifications:

• Model: VDO 437-035-001C
• Speed Range: 0 to 60 km/h (0 to 37 mph)
• Operating Voltage: 11 - 30 Volt DC
• Panel Hole Diameter: 80mm (3 1/8")
• Outside Diameter: 85mm (3 3/8")
• Installation Depth: 91mm
• Locking Height with Spinlock Nut: Optional 0.5mm to 23mm
• Locking Height with Bracket: 0.5mm to 12mm
• Dial Color: Black
• Dial Illumination: Floodlight Double (12V - 3.4W, White-Green-Red) or 24V - 3W (Optional)
• Pointer: Red backlight
• Illumination Connection: AMP Male Blade Connector 6.3 x 0.8mm (4x)
• Deflection Angle: 270°
• Sensor Signal Compatibility: RPM Inductive, RPM Hall, and RPM Blocking Oscillator Sensors
• Current Consumption (without illumination): < 100 mA
• Reverse Polarity Protection: Yes
• Front Protection Class: IP64 (DIN 40050) - Ozone proof, UV proof
• Rear Protection Class: IP42 (DIN 40050)
• Operating Temperature: -20°C to +70°C (-4°F to 158°F)
• Housing Material: Plastic, flame-retardant
• Lens: Single, Anti-glare Plastic
• Bezel: Triangular black (threaded ring, interchangeable with special tool)
• EMC Testing: According to EN 13309 and ISO 13766
• Nominal Position: NL 0 to NL 90 (DIN 16257)
• Packaging: Retail VDO Instrument package
• Country of Origin: Switzerland

Compatibility and Application:

• Ideal for use in automotive, marine, and industrial vehicles and machinery
• Compatible with vehicles using 12V and 24V electrical systems
• Perfect for dashboard installations with 80mm mounting holes
• Suitable for new installations or as a replacement in existing systems
• Can be used with VDO navigation systems and analog tachometer signal inputs

Benefits:

• Precise and reliable speed readings enhance vehicle control and safety
• Clear analog display with backlit pointer ensures visibility in all lighting conditions
• Compact, sleek design integrates seamlessly into various dashboard setups
• IP64-rated front protection ensures durability in challenging environments (splash-proof, ozone-resistant, UV-proof)
• Reverse polarity protection prevents damage to the device in case of incorrect wiring
• Wide operating voltage range (11-30V) makes it versatile for different vehicle types
• Easy installation with standard 80mm hole diameter and optional mounting height adjustment
• Long-lasting, corrosion-resistant design ensures the speedometer performs reliably over time
